Ni irihe tandukaniro riri hagati ya EIS na OIS?

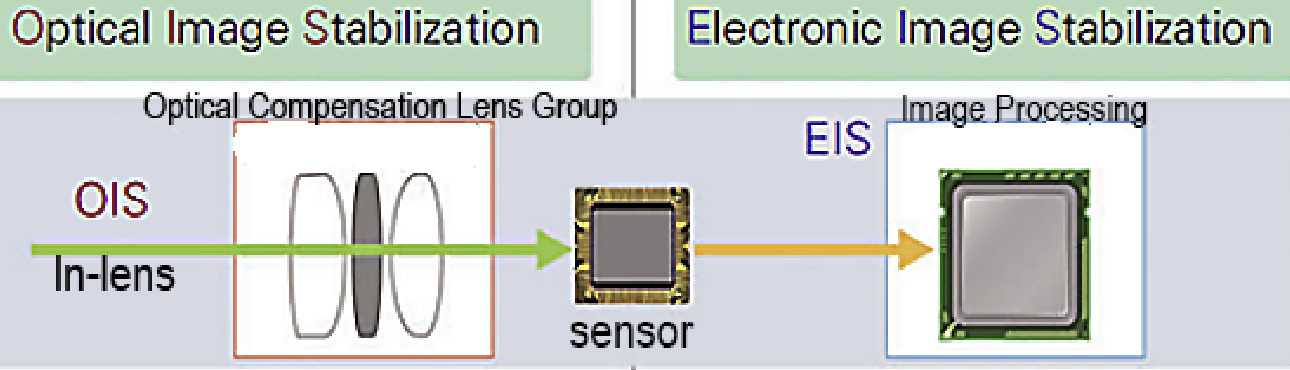

Mu rwego rw'umutekano, ibikoresho byo kugenzura bikunze kugaragara ku muyaga - byarabyaye bitera ubwoba - Gushiraho intera. Mugihe kamera Mugari - Uburyo bwa Angle Yerekana ibintu bike mvuka imvura yo hanze, Uburyo bwa Telechoto Byoroheje byongera kunyeganyega kwamashanyarazi, biganisha ku ishusho igaragara cyangwa no gutakaza intego. Kubwibyo, Uburyo bukora neza byagaragaye nkibisabwa bya tekiniki kuri sisitemu ndende - sisitemu yo kugenzura. Ikoranabuhanga riharanira umutekano muri iki gihe ryaguye mu byiciro bibiri: Ishusho nziza nziza (OIS) na Sletronic ishusho ya elegitoronike (EIS).

EIS ikoresha post yerekana ishusho - Gutunganya Algorithm kugirango ugere ku gikari. Birasaba ko kurasa hagarikwa kwagutse, bikaviramo 10% - gutakaza 20% byumwanya wo gukurikirana. Muri tekinoroji ya EIS, lens ishinzwe kugura amashusho gusa. Nyuma ya sensor ikora ishusho, igomba kubanza kuba ishusho ihagaze neza ukoresheje iyubatswe - Utunganya Pregorithm ya ALGOththm, hanyuma videwo irahagarara kandi yanduzwa. Ubu bwoko bwibishushanyo bimaze kugerwaho rwose binyuze mubukoranabuhanga bwo gutunganya digitale, bugabanya imiterere ya videwo kandi ifite ingaruka rusange. Muri rusange ikoreshwa mu hasi - ibicuruzwa byanyuma kubera inyungu zayo zigura.

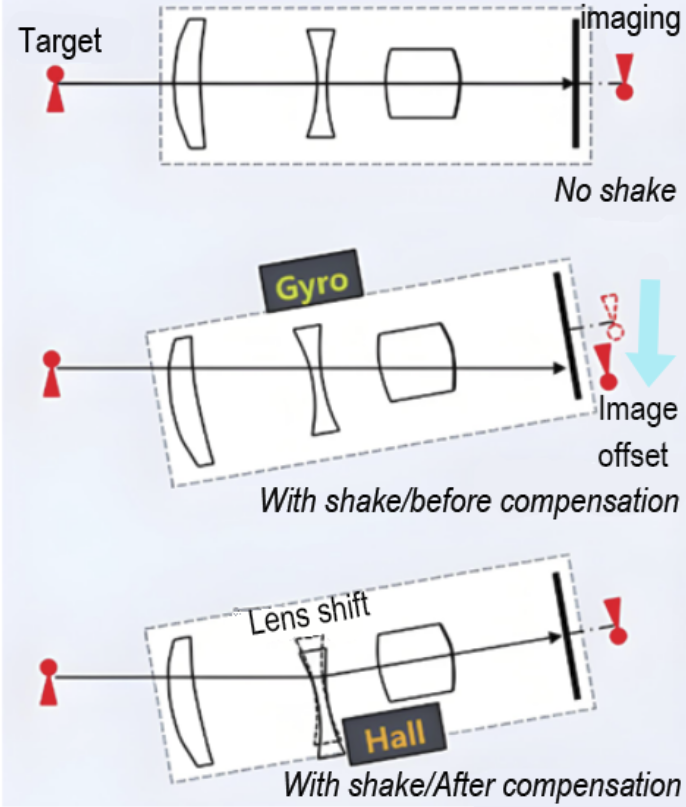

OIS ikoresha yubatswe - muri Groscope mu Nteko ya Lens kugirango imenye kubyuka kwa kamera. Groscope ihindura amakuru ya mashini mumashusho yamashanyarazi yashyikirijwe OIS umugenzuzi. Igice cyo gutunganya hagati gihita gisesengura no kubara imyambaro cyangwa inguni iyo lens igomba kwishyura, kandi igakoresha imbaraga zamato yimodoka kugirango utware neza, ukosore inzira nziza ya moteri kugirango utware neza Mu buryo bwa optique, wongeyeho lens yimukanwa, lens iyobowe hashingiwe ku bwinshi, indishyingeza inzira nziza isubira muri leta ihamye.

Muri buri ruziga rumwe, OIS igomba gukora neza: Kumenya kunyeganyega, gutunganya ibimenyetso, hamwe nibikoresho bya lens. Inzira zose ni icyerekezo cya servo, nacyo gifite igihe gito cyo gutahura, umuvuduko wihuse wibimenyetso, imirongo mito yindishyi, kandi yemeza algorithm yoroshye kandi ihamye.
