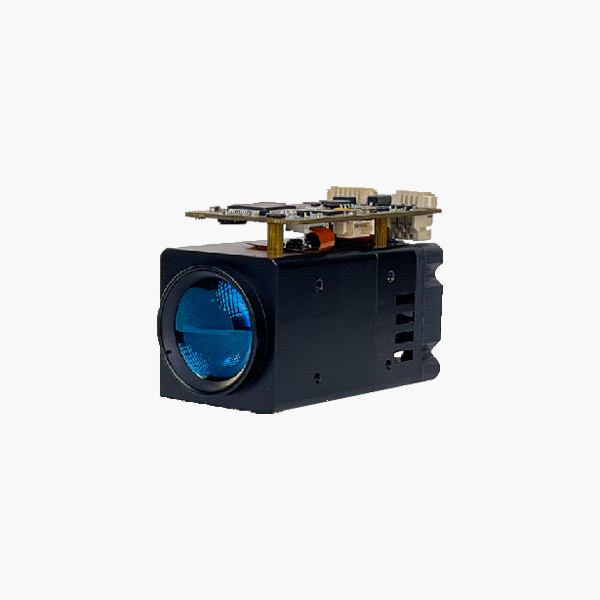

800m intera 850nm lite inzerere ya laser illuminator module

> Autont Auto - Dimming, guhuza ubwenge, gushyuha - swgus.

> - 40 ° C Ubushyuhe buke bukonje gutangira.

> Vcsel laser.

> Ishusho isobanutse hanyuma ugaragaze urubibi.

> Igishushanyo kinini.

Menyesha ubu Gukuramo

Icyitegererezo	SG - IR850 - 8ML
Intera Nziza	≥800M
Uburyo	Vcsel
Uburebure	850 ± 10nm
Umutekano wa Laser	Icyiciro cya 3b
Imbaraga	<20.0w
Imbaraga za Laser	4.4 ± 0.3w
Gusohoka imbaraga zoroheje	4.0 ± 0.3w
Laser beam inguni	Inguni ya kure 1.8 °, Intera nziza> 800m, Beam Umwanya wa Diameter <φ26m
Laser beam inguni	Hafi y'angle 71 °, intera nziza> 80m
Umuvuduko wa zoom	≤ 3s (inguni ya kure ~ hafi yinguni)
Uburyo bwo kugenzura	Urt_ttl, amafaranga 485, imfashanyigisho
Imigaragarire	Amafaranga 485, TTL232, Igenzura ry'intoki
Porotokole	Pelco - D (9600bps isanzwe, 115200bps, 4800bps, 2400bps kubishoboka)
Uburyo bw'akazi	Birakomeje
Ubuzima bwa serivisi	50000H
Imbaraga	DC12V ± 10%
Imikorere	<1.65a
Ubushyuhe bwo gukora	- 40 ° C ~ + 70 ° C.
Ubushyuhe bwo kubika	- 40 ° C ~ + 80 ° C.
Urwego	66mm * 35mm * 47mm
Uburemere	Hafi. 105g
