640x512 Kureka hamwe na 55mm Athermalized Lens Hermal + 2MP 44x Optical bi - Umutwaro uremereye urubuga rwa PTZ
|
Icyitegererezo |
SG - PTZ2044NKO- 6T55 |
||||
|
Ubushyuhe |
|||||
|
Sensor |
Ishusho |
Ibiti bya Vox Microbolometero |
|||
|
Imyanzuro |
600 × 512 |
||||
|
Ingano ya Pixel |
12μm |
||||
|
Intera meza |
8 ~ 14μm |
||||
|
Netd |
≤50Mk @ 25 ℃, f # 1.0 |
||||
|
Lens |
Uburebure bwibanze |
55mm athermalized lens |
|||
|
Zoom zoom |
N / a |
||||
|
Aperture |
F1.0 |
||||
|
Fov |
8.0 ° × 6.4 ° |
||||
|
Video |
Kwikuramo |
H.265 / H.264 / H.264h |
|||
|
Snapshot |
JPEG |
||||
|
Ibara rya pseudo |
Inkunga: Gushyushya, Bishyushye Bishyushye, Icyuma gitukura, umukororombya 1, Umukororombya, Umukororombya 2, Umukororombya 2, Fursion, Blusity Umutuku, Amber, TITCTIC |
||||
|
Imigezi |
Imigezi nyamukuru: 25fps @ (1280 × 1024), 25fps @ (640 × 512) Sub Stream: 25fps @ (704 × 675), 25fps @ (352 × 288) |
||||
|
Umuyoboro |
Umuyoboro |
IPV4 / IPV6, HTTP, HTTPS, QOS, FTP, UPNP, DHCS, RTP, DHCP, PPPOE, 302.1x, ip filteri |
|||
|
Imikoranire |
ONVIF Umwirondoro S, Fungura Api, SDK |
||||
|
Max. Guhuza |
20 |
||||
|
Ubwenge |
Ibyabaye bisanzwe |
Kumenya icyerekezo, gutahura amajwi, amakimbirane ya IP adresti, uburyo butemewe n'amategeko, kubika anomaly |
|||
|
IV |
Shigikira imikorere yubwenge:Umuyoboro,Kumenya uruzitiro, kwinjira, Gutererana. |
||||
|
Kumenyekanisha umuriro |
Inkunga |
||||
|
Imyanzuro |
50hz: 25fps @ (1280 × 1024) |
||||
|
Ubushobozi bwo kubika |
Ikarita ya Micro SD, kugeza kuri 256G |
||||
|
Vizale |
|||||
|
Sensor |
Ishusho |
1 / 1.8 "Sony Starvis aratera imbere CMOS |
|||
|
Pigiseli nziza |
Hafi. 4.17 Megapixel |
||||
|
Lens |
Uburebure bwibanze |
6.8mm ~ 300mm, 42x Optique zoom |
|||
|
Aperture |
F1.5 ~ F4.8 |
||||
|
Umwanya wo kureba |
H: 59.6 ° ~ 1.5 °, v: 35.7 ° ~ 0.8 °, D: 66.7 ° ~ 1.7 ° |
||||
|
Intera ya hafi |
1.0m ~ 1.5m (yagutse ~ tele) |
||||
|
Umuvuduko wa zoom |
Hafi. 4s (Optique yagutse ~ tele) |
||||
|
Dori intera (Muntu) |
Kumenya |
Itegereze |
Menya |
Menya |
|
|
2,933m |
1,164m |
586m |
293m |
||
|
Video |
Kwikuramo |
H.265 / H.264 / H.264h / Mjpeg |
|||
|
Ubushobozi bworoshye |
Imigezi 3 |
||||
|
Imyanzuro |
50hz: 50 / 25fps @ 2MP (1920 × 1080) 60hz: 60 / 30fps @ 2MP (1920 × 1080) |
||||
|
Video Bit Igipimo |
32Kbps ~ 16Mbps |
||||
|
Amajwi |
AAC / MP2L2 |
||||
|
Umuyoboro |
Umuyoboro |
IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour |
|||
|
Api |
Onvin, http api, sdk |
||||
|
Urubuga |
Ni ukuvuga, inkombe, firefox, chrome |
||||
|
Umukoresha |
Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha |
||||
|
Ububiko |
Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS |
||||
|
Multicast |
Inkunga |
||||
|
Ibyabaye rusange |
Icyerekezo, tamper, ikarita ya SD, umuyoboro |
||||
|
Ivs |
DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze |
||||
|
S / n |
≥55DB (AGC kuzimya, uburemere kuri) |
||||
|
Kumurika |
Ibara: 0.005Lux / F1.5; B / W: 0.0005Lux / F1.5 |
||||
|
Kugabanya urusaku |
2D / 3D |
||||
|
Uburyo bwo kwerekana |
Auto, Imbere Yibanze, Funga Icyambere, Koresha Ibyingenzi, Imfashanyigisho |
||||
|
Indishyi Zifata |
Inkunga |
||||
|
Umuvuduko |
1/3 ~ 1/30000 |
||||
|
Blc |
Inkunga |
||||
|
HLC |
Inkunga |
||||
|
Wdr |
Inkunga |
||||
|
Kuringaniza Yera |
AUTO, UNUAL, MUTOOR, Hanze, AT, Amatara ya Sodium, itara ryumuhanda, karemano, gusunika |
||||
|
Umunsi / nijoro |
Amashanyarazi, ICR (Auto / Igitabo) |
||||
|
Uburyo bwo kwibanda |
Auto, intoki, igice cyimodoka, auto yihuta, yihuta yimodoka, imwe yisunika af |
||||
|
Defog |
Inkunga |
||||
|
Optique defog |
Inkunga, 750nm ~ 1100nm umuyoboro ni optique defogi |
||||
|
Ubushyuhe bwa haze |
Inkunga |
||||
|
Flip |
Inkunga |
||||
|
Eis |
Inkunga |
||||
|
Zoom zoom |
16x |
||||
|
Isafuriya |
|||||
|
Imbaraga kuri / kuzimya - Kugenzura |
Yego |
||||
|
Preset |
255 |
||||
|
Uburyo bwo gutumanaho |
Rs485 |
||||
|
Pan / TIST |
Pan: 360 ° kuzunguruka; TOLT: - 90 ° ~ 40 ° |
||||
|
Umuvuduko wa Pan |
Ishirwaho, Pan: 0.1 ° ~ 150 ° / s |
||||
|
Umuvuduko |
Itegurwa, Pan: 0.1 ° ~ 60 ° / s |
||||
|
ICYEMEZO CY'ABANYARWANDA - Umwanya |
± 0.1 ° |
||||
|
Scan |
Inkunga |
||||
|
Wiper |
Inkunga (kuri kamera igaragara) |
||||
|
Imigaragarire |
|||||
|
Imigaragarire |
Inkunga |
||||
|
Ethernet |
1x rj45 (10base - t / 100base - TX) |
||||
|
Audio I / O. |
1/1 (kuri kamera igaragara gusa) |
||||
|
Imenyesha i / o |
1/1 |
||||
|
Analog Video |
Icyambu (BNC, 1.0V [p - p], 75ω) kuri kamera igaragara gusa |
||||
|
Rs485 |
1 |
||||
|
Rusange |
|||||
|
Amazi |
Ip67 |
||||
|
Imbaraga |
DC 36V Imbaraga |
||||
|
Kunywa amashanyarazi |
50w |
||||
|
Ubushuhe |
0 ~ 90% Non - Interani |
||||
|
Ubushyuhe bwakazi |
- 40 ° C ~ 70 ° C / 20% kugeza 90% RH |
||||
|

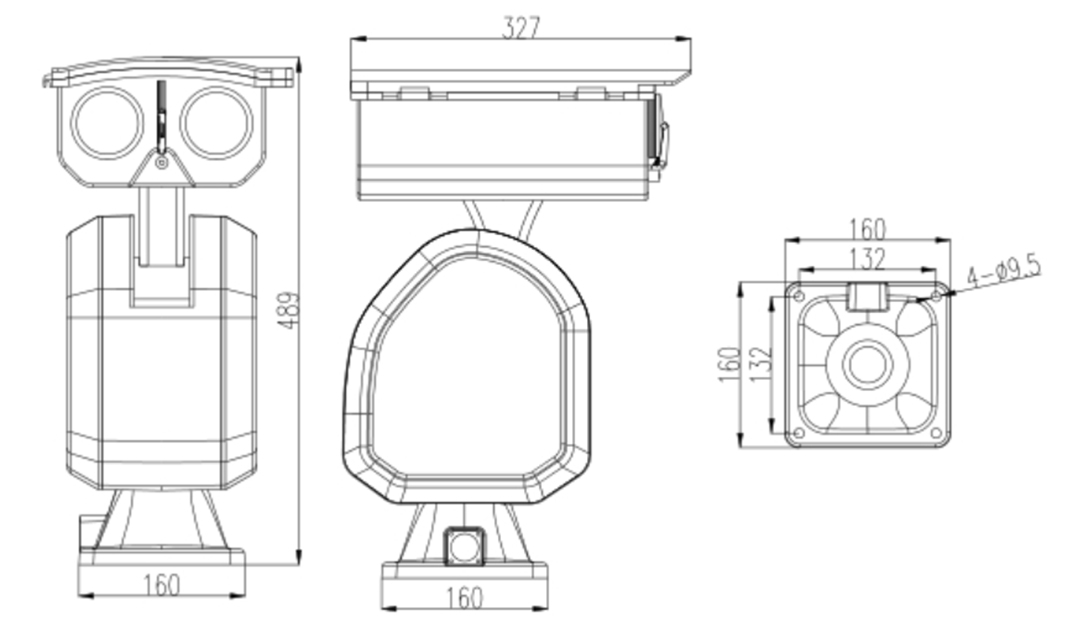

Ibipimo (l * w * h) |
489mm * 327mm * 244mm |
||||
|
Uburemere |
Hafi. 20kg |
||||
