Intera 500m 1550nm infrafnt Laser Illuminator Module

Icyitegererezo

Sg -IR1550-5M

Intera Nziza

≥500M

Uburyo

Vcsel

Uburebure

1550nm ± 15nm

Imbaraga

≤21w

Imbaraga za Laser

2.2W ± 0.2w

Gusohoka imbaraga zoroheje

2.0w ± 0.2W

Kumurika

1 ° ~ 30 ° (zoom ikomeza)

Umwanya wa diameter

Inguni ya kure 1.0 °, Intera Ibyiza> 500m, Beam Umwanya wa Diameter <φ8.7m

Hafi yinguni 30 °, Intera nziza> 80m

Igihe cya Zoom

≤4s (hafi ya kure)

Urwego rw'umutekano wa Laser

Icyiciro 1

Imigaragarire

Amafaranga 485, TTL232, Igenzura ry'intoki

Porotokole

Pelco - D, 9600bps isanzwe (4800bps, 2400bps kubihitamo)

Uburyo bw'akazi

Birakomeje

Ubuzima bwa serivisi

> 30000H

Imbaraga

DC12V ± 10%, 1.5 ± 0.2a

Ubushyuhe bwo gukora

- 20 ° C ~ + 55 ° C.

Ubushyuhe bwo kubika

- 20 ° C ~ + 70 ° C.

Urwego

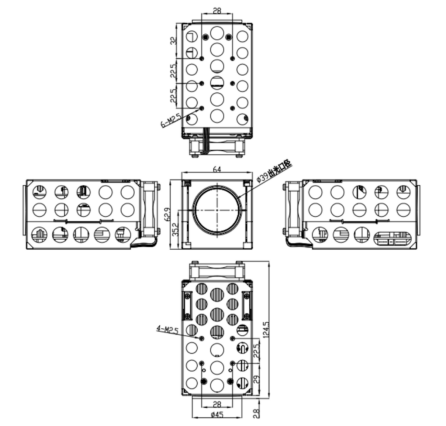

124.5mm * 64mm * 63mm

Uburemere

400g
