4MP 37x Zoom(6.5~240mm) and 640×512 55mm(35mm)Thermal Bi-spectrum Network PTZ Camera

4mp 37x zoom (6.5 ~ 240mm) na 640 × 512 55mm (35mm) ubushyuhe bwa bi - spectrum umuyoboro wa PTZ Kamera

> Horizontal 360 ° kuzunguruka, kwihuta kugera 0.1 ° ~ 160 ° / s.

> Vertical - 90 ° ~ + 90 °, kwihuta kugeza 0.1 ° ~ 55 ° / s.

> Kubanziriza (umwanya ± 0.1 °.

> IP67 idafite amazi.

Kamera

> 1 / 1.8 "Sony CMOS Sensor.

> Gukomera 37x Optique zoom (6.5mm ~ 240mm).

> Max. 4mp (2688 × 1520).

> Shigikira ibikorwa bitandukanye bya IV.

> Shigikira defog ya eleronic na optique defog.

> Heilicon gushya kwa Ai Kugabanuka ISP.

Ubushyuhe Kamera

> 640 × 512 yo gukemura, kumva neza kwiyumvisha.

> 12μm pixel ikibuga.

> 55mm (35mm) athermaline lens.

> Shigikira ibikorwa bitandukanye bya IV.


    Gukuramo

    Ibisobanuro birambuye

    Urwego

    Icyitegererezo

    SG - PTZ4037Nio - 6t55

    SG - PTZ4037Nio - 6t35

    Ubushyuhe

    Sensor

    Ishusho

    Ibiti bya Vox Microbolometero

    Imyanzuro

    600 × 512

    Ingano ya Pixel

    12μm

    Intera meza

    8 ~ 14μm

    Netd

    ≤50Mk @ 25 ° C, F # 1.0

    Lens

    Uburebure bwibanze

    55mm athermalized lens

    35m Athermalized Lens

    Zoom zoom

    N / a

    N / a

    F Agaciro

    F1.0

    F1.0

    Fov

    8.0 ° × 6.4 °

    12.5 ° × 10.0 °

    Video

    Kwikuramo

    H.265 / H.264 / H.264h

    Snapshot

    JPEG

    Ibara rya pseudo

    Inkunga: Gushyushya, Bishyushye Bishyushye, Icyuma gitukura, umukororombya 1, Umukororombya, Umukororombya 2, Umukororombya 2, Fursion, Blusity Umutuku, Amber, TITCTIC

    Imigezi

    Imigezi nyamukuru: 25fps @ (1280 × 1024), 25fps @ (640 × 512)

    Sub Stream: 25fps @ (704 × 675), 25fps @ (352 × 288)

    Umuyoboro

    Umuyoboro

    IPV4 / IPV6, HTTP, HTTPS, QOS, FTP, UPNP, DHCS, RTP, DHCP, PPPOE, 302.1x, ip filteri

    Imikoranire

    ONVIF Umwirondoro S, Fungura Api, SDK

    Max. Guhuza

    20

    Ubwenge

    Ibyabaye bisanzwe

    Kumenya icyerekezo, gutahura amajwi, amakimbirane ya IP adresti, uburyo butemewe n'amategeko, kubika anomaly

    IV

    Shigikira imikorere yubwenge:Umuyoboro,Kumenya uruzitiro, kwinjira, Gutererana.

    Kumenyekanisha umuriro

    Inkunga

    Ubushobozi bwo kubika

    Ikarita ya Micro SD, kugeza kuri 256G

    Vizale

    Sensor

    Ishusho

    1 / 1.8 "Sony Starvis aratera imbere CMOS

    Pigiseli nziza

    Hafi. 4.17 Megapixel

    Lens

    Uburebure bwibanze

    6.5mm ~ 240mm, 37x Optique zoom

    Aperture

    F1.5 ~ F4.8

    Umwanya wo kureba

    H: 61.90 ° ~ 1.86 °, V: 37.28 ° ~ 1.05 °, D: 69.05 ° ~ 2.13 °

    Intera ya hafi

    1.0m ~ 5m (yagutse ~ tele)

    Umuvuduko wa zoom

    <4s (optique yagutse ~ tele)

    Dori intera

    (Muntu)

    Kumenya

    Itegereze

    Menya

    Menya

    3,311

    1,314m

    662m

    331m

    Video

    Kwikuramo

    H.265 / H.264B / H.264M / H.264h / mjpeg

    Ubushobozi bworoshye

    Imigezi 3

    Imyanzuro

    50hz: 50fps @ 4MP (2688 × 1520); 50fps @ 2mp (1920 × 1080)

    60hz: 60fps @ 4MP (2688 × 1520); 60fps @ 2MP (1920 × 1080)

    Video Bit Igipimo

    32Kbps ~ 16Mbps

    Amajwi

    AAC / MP2L2

    Umuyoboro

    Umuyoboro

    IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour

    Api

    Onvin, http api, sdk

    Urubuga

    Ni ukuvuga, inkombe, firefox, chrome

    Umukoresha

    Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha

    Ububiko

    Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS

    Multicast

    Inkunga

    Ibyabaye rusange

    Icyerekezo, tamper, ikarita ya SD, umuyoboro

    Ivs

    DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze

    Intego yo gutandukanya

    Umuntu / imodoka

    S / n

    ≥55DB (AGC kuzimya, uburemere kuri)

    Kumurika

    Ibara: 0.0001lux / F1.5; B / W: 0.00005Lux / F1.5

    Kugabanya urusaku

    2D / 3D / Kugabanya urusaku

    Uburyo bwo kwerekana

    Auto, Imbere Yibanze, Funga Icyambere, Koresha Ibyingenzi, Imfashanyigisho

    Indishyi Zifata

    Inkunga

    Umuvuduko

    1/3 ~ 1/30000

    Blc

    Inkunga

    HLC

    Inkunga

    Wdr

    Inkunga

    Kuringaniza Yera

    AUTO, UNUAL, MUTOOR, Hanze, AT, Amatara ya Sodium, itara ryumuhanda, karemano, gusunika

    Umunsi / nijoro

    Amashanyarazi, ICR (Auto / Igitabo)

    Uburyo bwo kwibanda

    Auto, intoki, igice cyimodoka, auto yihuta, yihuta yimodoka, imwe yisunika af

    Defog

    Inkunga

    Optique defog

    Inkunga, 750nm ~ 1100nm umuyoboro ni optique defogi

    Flip

    Inkunga

    Eis

    Inkunga

    Zoom zoom

    16x

    Isafuriya

    Imbaraga kuri / kuzimya - Kugenzura

    Yego

    Preset

    255

    Uburyo bwo gutumanaho

    Rs485

    Pan / TIST

    Pan: 360 ° kuzunguruka; TOLT: - 90 ° ~ + 90 °

    Umuvuduko wa Pan

    Ishirwaho, Pan: 0.1 ° ~ 160 ° / s

    Umuvuduko

    IDUMWE, TILT: 0.1 ° ~ 55 ° / s

    ICYEMEZO CY'ABANYARWANDA - Umwanya

    ± 0.1 °

    Scan

    Inkunga

    Wiper

    Inkunga (kuri kamera igaragara)

    Imigaragarire

    Imigaragarire

    Inkunga

    Ethernet

    1 × RJ45 (10Base - T / 100Base - TX)

    Audio I / O.

    1/1 (kuri kamera igaragara gusa)

    Imenyesha i / o

    1/1

    Rs485

    1

    Rusange

    Amazi

    Ip67

    Imbaraga

    DC9 ~ 36V Imbaraga (AC 24V Kubihitamo)

    Kunywa amashanyarazi

    <30w

    Ubushuhe

    0 ~ 90% Non - Interani

    Ubushyuhe bwakazi

    - 40 ° C ~ 70 ° C / 0 kugeza 90% RH

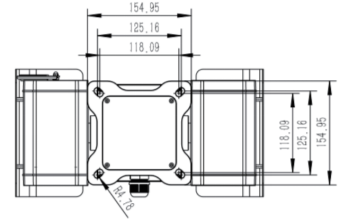

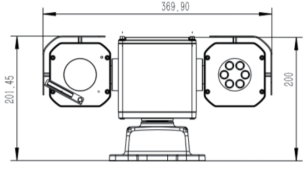

    Ibipimo (l * w * h)

    190mm * 369.9mm * 201.5mm

    Uburemere

    Hafi. 7.4Kg
