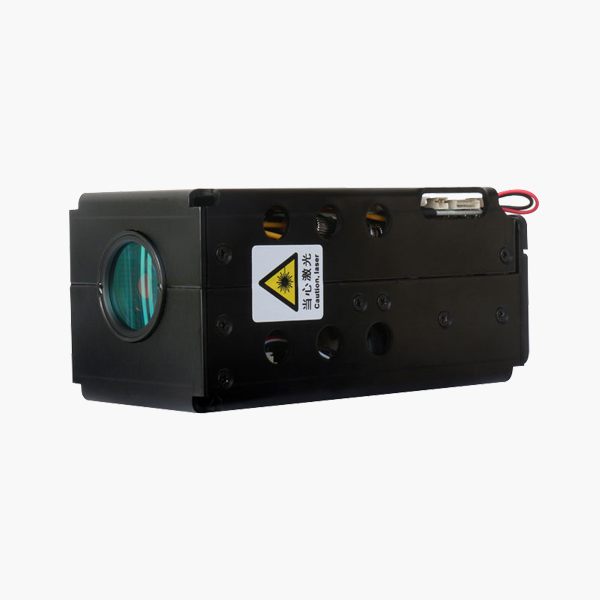

Intera 3000m 808nm infrafnt Laser Illuminator Module
Icyitegererezo | Sg - ir808 - 3K |
| Intera Nziza | ≥3000M |
| Uburyo | Fibling Coupling Eel (Enter Gusohora Laser) |
| Uburebure | 808 ± 10NM |
| Imbaraga | <60w |
| Gusohoka imbaraga zoroheje | ≥1W |
| Laser beam inguni | Farile Farile 0.3 °, intera nziza> 3000m, urumuri rwa diameter <φ16m |
| Hafi yingle 50 °, Intera nziza> 10m | |
| Igihe cyo gutangiza | 12 |
| Uburyo bwo kugenzura | Urt_ttl, amafaranga 485, imfashanyigisho |
| Imigaragarire | Amafaranga 485, TTL232, Igenzura ry'intoki |
| Porotokole | Pelco - D (9600bps) |
| Uburyo bw'akazi | Birakomeje |
| Ubuzima bwa serivisi | > 20000H |
| Imbaraga | DC24V ± 10%, 2.2a ± 0.3A |
| Ubushyuhe bwo gukora | - 35 ° C ~ + 55 ° C. |
| Ubushyuhe bwo kubika | - 40 ° C ~ + 85 ° C. |
| Urwego | 444mmx136mx123mm |
| Uburemere | 3.7Kg |
