2mp 30p
|
Icyitegererezo |
SG - ZCM2030A |
|
|
Sensor |
Ishusho |
1 / 2.8 "Sony IMX307 CMOS |
|
Pigiseli nziza |
Hafi. 2.13 Megapixel |
|
|
Lens |
Uburebure bwibanze |
4.7mm ~ 141mm, 30x optique zoom |
|
Aperture |
F1.5 ~ F4.0 |
|
|
Umwanya wo kureba |
H: 60.5 ° ~ 2.3 ° |
|
|
Intera ya hafi |
2m ~ 3m (yagutse ~ tele) |
|
|
Umuvuduko wa zoom |
Hafi. 4s (Optique yagutse ~ tele) |
|
|
Video |
Imiterere |
Hd - TVI, HDCVvi, Ahd, CVBS 4 muri 1 (OSD menu Guhindura) |
|
Ibisohoka |
IVP - P Igisaruwe |
|
|
Imyanzuro |
TVI / CVI / AHD: 25 / 30fps @ 2MP (1920 × 1080) CBVS: 700TVL |
|
|
OSD |
Kuri / kuzimya (11 * 20 inyuguti) |
|
|
Kumurika |
Ibara: 0.01lux / F1.5; B / W: 0.001lux / F1.5 |
|
|
Umunsi / nijoro |
ICR (Auto, ibara, umukara, hanze) |
|
|
S / n |
≥50DB |
|
|
Kugabanya urusaku |
Inkunga |
|
|
Kugabanya urusaku |
Inkunga (hejuru / hagati / hasi) |
|
|
Uburyo bwo kwibanda |
Auto, imfashanyigisho, kimwe cya kabiri, |
|
|
Uburyo bwo kwerekana |
Auto, imfashanyigisho |
|
|
Umuvuduko |
Auto, 1/50 (1/60) ~ 1/ 100.000 |
|
|
Funga buhoro |
X2 |
|
|
Kuringaniza Yera |
Auto, mu nzu, hanze, inzira yimodoka, gusunika |
|
|
Blc |
Kuri / kuzimya |
|
|
Imodoka igenzura |
Auto, imfashanyigisho |
|
|
Amabanga |
Kuri / kuzimya, max. Uturere 8 |
|
|
Ibisobanuro |
Guhinduka |
|
|
Itandukaniro |
Guhinduka |
|
|
Defog |
Inkunga |
|
|
Indorerwamo |
Kuri / kuzimya, kuzunguruka, flip |
|
|
Ishusho |
Kuri / kuzimya |
|
|
Imigaragarire |
6pin, 2pin 1.25mm Ingimbi, hamwe nububiko bwumurizo |
|
|
Porotokole |
Sony Visca, Pelco D, UTC (9.6KBPS 10bit) |
|
|
Ibihe |
- 30 ° C ~ + 60 ° C / 20% kugeza 80% rh |
|
|
Imiterere |
- 40 ° C ~ + 70 ° C / 20% kugeza 95% rh |
|
|
Amashanyarazi |
DC 12V / 90Ma ± 6MA (DC Intera: 9 ~ 16V) |
|
|
Kunywa amashanyarazi |
Max. 4w |
|
|

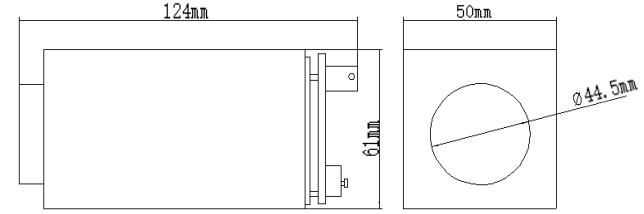

Ibipimo (l * w * h) |
95.5mm * 50mm * 61mm (124mm * 51mm * 56mm hamwe ninama yikibaho) |
|
|
Uburemere |
250g (268g hamwe n'ikibaho) |
|
