2MP 20x AI ISP Based Zoom Network and MIPI digital Dual Output Camera Module

2mp 20x ai isp ishingiye kumuyoboro wa zoom na mipi digitale

> 1 / 2.8 "Sony Starvis 2 Cmos Sensor.

> Imbaraga za 20x nziza (5.4 ~ 108mm).

> Max. 2mp (1920 × 1080).

> Shigikira ibikorwa bitandukanye bya IV.

> Shigikira defog ya eleronic.

> Shigikira amakuru atandukanye ya OSD hejuru yumurongo wumuyoboro.

> Shigikira Mipi Digital Oxguhuza.

> Hilicon Ibisekuru bishya Ai Kugabanya urusaku ISP, Kugarura Isi Yukuri.


    Gukuramo

    Ibisobanuro birambuye

    Urwego

    Icyitegererezo

    SG - zcm2020nMil

    Sensor

    Ishusho

    1 / 2.8 "SONY STARVIS 2 Iterambere CMOS

    Pigiseli nziza

    Hafi. 2.18 Megapixel

    Lens

    Uburebure bwibanze

    5.4Mm ~ 108mm, 20x Optique zoom

    Aperture

    F1.78 ~ F2.86

    Umwanya wo kureba

    H: 54.5 ° ~ 2.95 °, V: 32.3 ° ~ 1.66 °, D: 61.2 ° ~ 3.39 °

    Intera ya hafi

    0.1m ~ 1.5m (yagutse ~ tele)

    Umuvuduko wa zoom

    <4s (yagutse ~ tele)

    Dori intera

    (Muntu)

    Kumenya

    Itegereze

    Menya

    Menya

    1,490m

    591m

    298m

    149M

    Video

    Kwikuramo

    H.265 / H.264 / H.264H / H.264B / Mjpeg

    Ubushobozi bworoshye

    Imigezi 3

    Imyanzuro

    Imigezi nyamukuru: 50 / 60fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720
    Sub - stream1: 60fps @ 704 × 480; 60fps @ 352 × 240;

    50fps @ 704 × 576; 50fps @ 352 × 288

    Sub - stream1: 50 / 60fps @ 1280 × 720; 60fps @ 704 × 480;

    50fps @ 704 × 576

    Video Bit Igipimo

    32Kbps ~ 16Mbps

    Amajwi

    AAC / MP2L2

    Mipi

    50hz: 50fps @ 2MP (1920 × 1080)

    60hz: 60fps @ 2mp (1920 × 1080)

    Umuyoboro

    Umuyoboro

    IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour

    Api

    Onvin, http api, SDK, GB28181

    Urubuga

    Ni ukuvuga, inkombe, firefox, chrome

    Umukoresha

    Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha

    Ububiko

    Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS

    Multicast

    Inkunga

    Kuzamura software

    Gusa birashobora kuzamura software ukoresheje icyambu.

    Ibyabaye rusange

    Icyerekezo, tamper, ikarita ya SD, umuyoboro

    Ivs

    DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze

    Intego yo gutandukanya

    Umuntu / imodoka

    S / n

    ≥55DB

    Kumurika

    Ibara: 0.0005Llux / F1.78; B / W: 0.0001lux / F1.78

    Kugabanya urusaku

    2D / 3D / Kugabanya urusaku

    Uburyo bwo kwerekana

    Auto, Imbere Yibanze, Funga Icyambere, Koresha Ibyingenzi, Imfashanyigisho

    Indishyi Zifata

    Inkunga

    Umuvuduko

    1/1 ~ 1/30000

    Blc

    Inkunga

    HLC

    Inkunga

    Wdr

    Inkunga

    Kuringaniza Yera

    AUTO, UNUAL, MUTOOR, Hanze, AT, Amatara ya Sodium, itara ryumuhanda, karemano, gusunika

    Umunsi / nijoro

    ICR (Auto / Igitabo)

    Uburyo bwo kwibanda

    Auto, intoki, igice cyimodoka, auto yihuta, yihuta yimodoka, imwe yisunika af

    Defog

    Inkunga

    Ubushyuhe bwa haze

    Inkunga

    Flip

    Inkunga

    Eis

    Inkunga

    Zoom zoom

    16x

    Kugenzura hanze

    TTL

    Imigaragarire

    4Pin Ethernet Port, 6pin Power & Uart Port, 5pin Audio port.

    30pin mipi

    Porotokole

    Sony Visca, Pelco D / P.

    Ibihe

    - 30 ° C ~ + 60 ° C / 20% kugeza 80% rh

    Imiterere

    - 40 ° C ~ + 70 ° C / 20% kugeza 95% rh

    Amashanyarazi

    DC 12V

    Kunywa amashanyarazi

    Imbaraga zihamye: 2.5W, Imbaraga za siporo: 3.6w

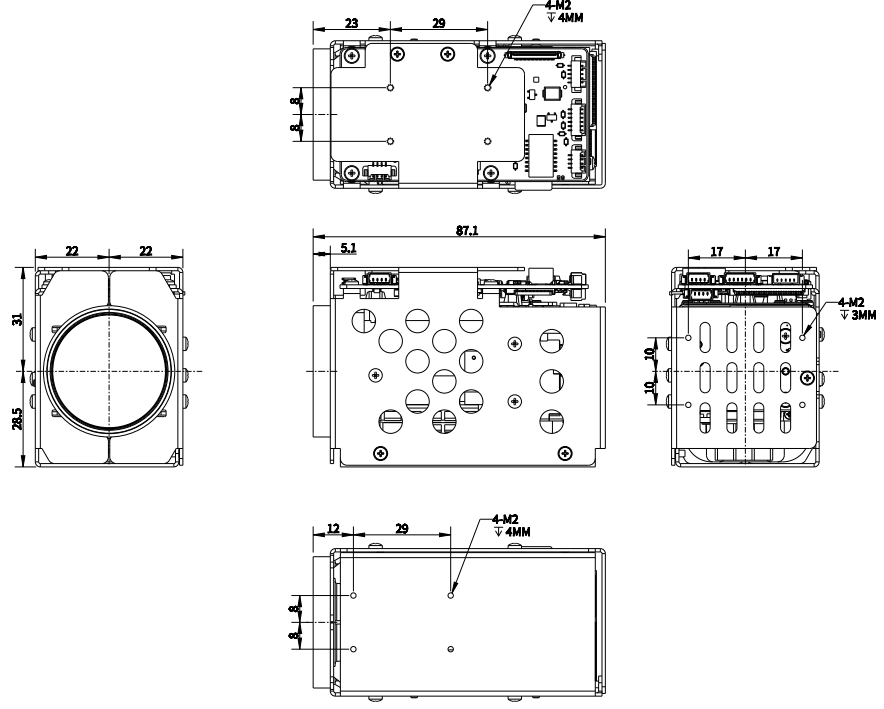

    Ibipimo (l * w * h)

    87.1mm * 44mm * 59.5mm

    Uburemere

    230G
