2mp 10p

Icyitegererezo

SG - ZCM2010NMil - g

Sensor

Ishusho

1 / 2.6 "Chisel Chiter CMOS

Pigiseli nziza

Hafi. 2.3 Megapixel

Lens

Uburebure bwibanze

4.8mm ~ 48mm, 10x Optique zoom

Aperture

F1.7 ~ F3.2

Umwanya wo kureba

H: 61.93 ° ~ 6.87 °, V: 37.30 ° ~ 3.87 ° ~ 3.87 °, D: 69.09 ° ~ 7.88 °

Intera ya hafi

1m ~ 5m (yagutse ~ tele)

Umuvuduko wa zoom

<4s (yagutse ~ tele)

Dori intera

(Muntu)

Kumenya

Itegereze

Menya

Menya

640m

254m

128m

64m

Video

Kwikuramo

H.265 / H.264B / H.264h / H.264m / Mjpeg

Ubushobozi bworoshye

Imigezi 3

Imyanzuro

Imigezi nyamukuru: 50 / 60fps @ (1920 × 1080, 1280 × 720)

Sub - 50 / 60fps @ (704 × 576, 352 × 288, 352 × 240)

Sub - 50 / 60fps @ (1280 × 720,704 × 576, 704 × 480)

Video Bit Igipimo

32Kbps ~ 16Mbps

Mipi

50hz: 50fps @ 2MP (1920 × 1080)

60hz: 60fps @ 2mp (1920 × 1080)

Umuyoboro

Umuyoboro

IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour

Api

Onvin, http api, sdk

Urubuga

Ni ukuvuga, inkombe, firefox, chrome

Umukoresha

Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha

Ububiko

Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS

Multicast

Inkunga

Kuzamura software

Gusa birashobora kuzamura software ukoresheje icyambu.

Ibyabaye rusange

Icyerekezo, tamper, ikarita ya SD, umuyoboro

Ivs

DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze

Intego yo gutandukanya

Umuntu / imodoka

S / n

≥55DB

Kumurika

Ibara: 0.01lux / F1.7; B / W: 0.001lux / F1.7

Kugabanya urusaku

2D / 3D / Kugabanya urusaku

Uburyo bwo kwerekana

Auto, Imbere Yibanze, Funga Icyambere, Koresha Ibyingenzi, Imfashanyigisho

Indishyi Zifata

Inkunga

Umuvuduko

1/1 ~ 1/30000

Agc

Inkunga

Blc

Inkunga

HLC

Inkunga

Wdr

Inkunga

Kuringaniza Yera

AUTO, UNUAL, MUTOOR, Hanze, AT, Amatara ya Sodium, itara ryumuhanda, karemano, gusunika

Umunsi / nijoro

ICR (Auto / Igitabo)

Uburyo bwo kwibanda

Auto, intoki, igice cyimodoka, auto yihuta, yihuta yimodoka, imwe yisunika af

Defog

Inkunga

Ubushyuhe bwa haze

Inkunga

Flip

Inkunga

Eis

Inkunga

Zoom zoom

16x

Kugenzura hanze

TTL

Imigaragarire

4Pin Ethernet Port, 6pin Power & Uart Port, 30pin Mipi

Porotokole

Sony Visca, Pelco D / P.

Ibihe

- 30 ° C ~ + 60 ° C / 20% kugeza 80% rh

Imiterere

- 40 ° C ~ + 70 ° C / 20% kugeza 95% rh

Amashanyarazi

DC 12V

Kunywa amashanyarazi

Tbd

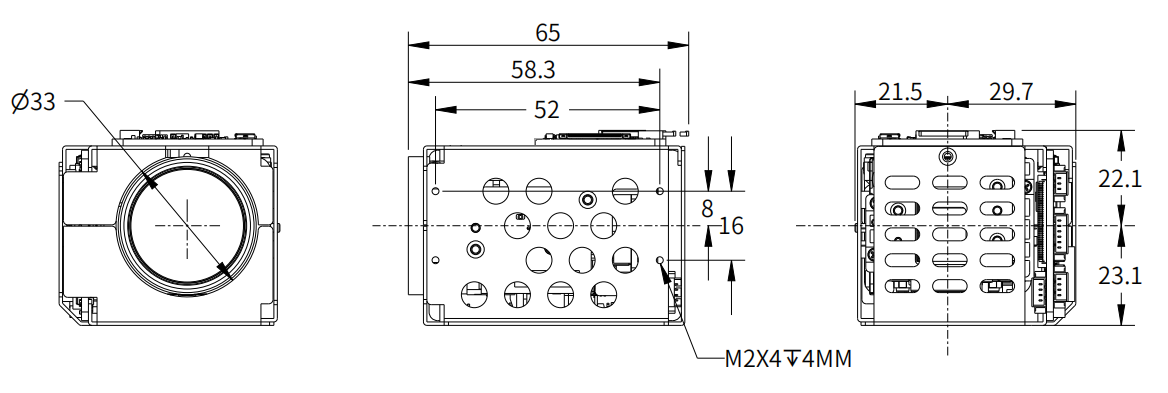

Ibipimo (l * w * h)

65mm * 45mm * 52mm

Uburemere

152g
