1280x1024 Umuyoboro wa Thermal Module hamwe na 30 ~ 180mm lens ya moteri

> 1280 × 1024, sensor nyinshi.

> 12μm pixel ikibuga.

> 30 ~ 180mm moteri moteri.

> Shigikira kwibandaho byihuse.

> Shigikira ibikorwa bitandukanye bya IV.

> Gushyigikira kumenya umuriro.

> Shigikira imikorere ya EIS.

> Gushyigikira Urusobe rw'urusobe (HD - SDI SDIUX DIAL ihitamo).

Menyesha ubu Gukuramo

Ibisobanuro birambuye

Urwego

Icyitegererezo		SG - TCM12N2 - M.30180
Sensor	Ishusho	Ibiti bya Vox Microbolometero
	Imyanzuro	1280 × 1024
	Ingano ya Pixel	12μm
	Intera meza	8 ~ 14μm
	Netd	≤50Mk @ 25 ℃, f # 1.0
Lens	Uburebure bwibanze	30 ~ 180mm lens ya moteri
	Kuzamura	6x
	Zoom zoom	4x
	F Agaciro	F1.0 ~ F1.4
	Fov	28.72 ° × 23.15 ° ~ 4.89 ° × 3.91 °
Video	Kwikuramo	H.265 / H.264B / H.264M / H.264h / mjpeg
	Snapshot	JPEG
	Ibara rya pseudo	Inkunga: Gushyushya, Bishyushye Bishyushye, Icyuma gitukura, umukororombya 1, Umukororombya, Umukororombya 2, Umukororombya 2, Fursion, Blusity Umutuku, Amber, TITCTIC
	Imigezi	Imigezi nyamukuru: 25 / 30fps @ 1280 × 1024, 25/4ps @ 704 × 576 Sub - 25/4ps @ 704 × 576, 25/4ps @ 352 × 240
Umuyoboro	Umuyoboro	IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour
	Imikoranire	Onvin, http api, SDK, GB28181
	Max. Guhuza	20
Ubwenge	Ibyabaye rusange	Icyerekezo, tamper, ikarita ya SD, umuyoboro
	IV	DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze
	Kumenyekanisha umuriro	Inkunga
Imigaragarire	Ethernet	4Pin Ethernet Port, 10m / 100m wenyine - Guhuza
	Hd - sdi (bidashoboka)	1ch - sdi
	Gutabaza muri / hanze	1/1
	Audio muri / hanze	1/1
	Rs485	Inkunga
Imyanzuro		50hz: 25fps @ (1280 × 1024)
Ubushobozi bwo kubika		Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS
Amashanyarazi		DC 12V, 1a
Ibihe		- 30 ° C ~ + 60 ° C / 20% kugeza 80% rh
Imiterere		- 40 ° C ~ + 70 ° C / 20% kugeza 95% rh

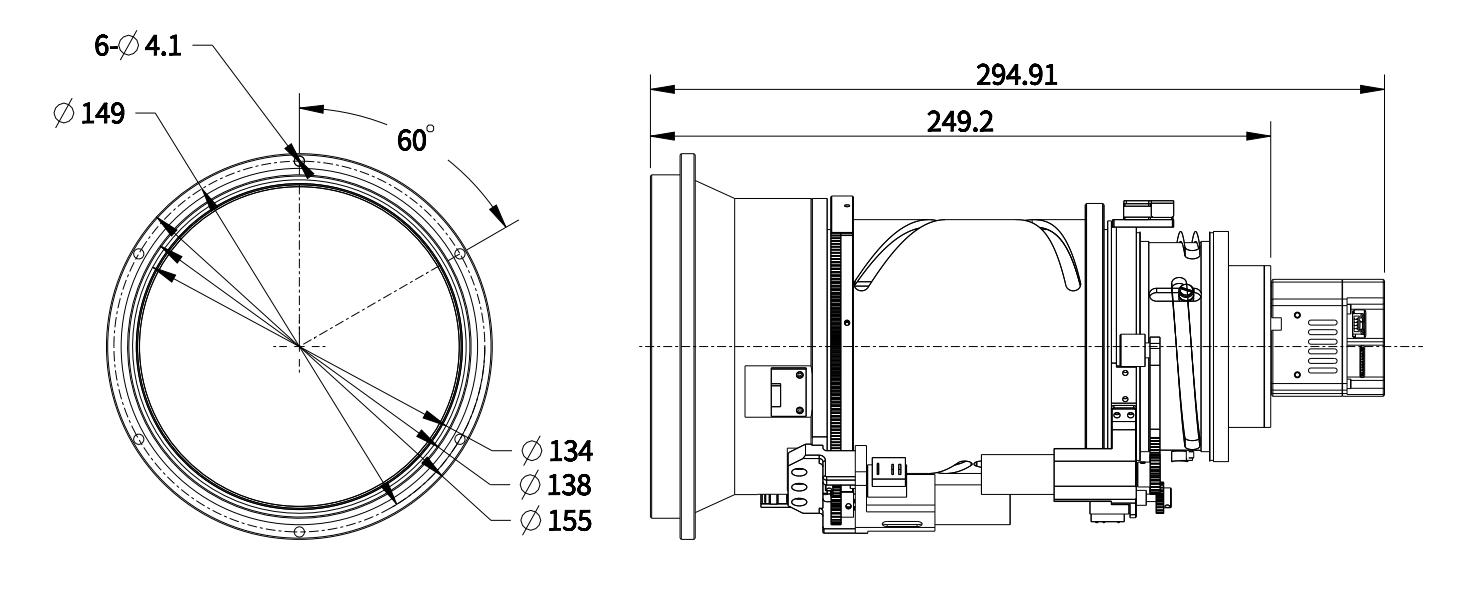

Ibipimo (l * w * h)		Hafi. 295mm * 155mm * 155mm
Uburemere		Hafi. 3.2Kg
