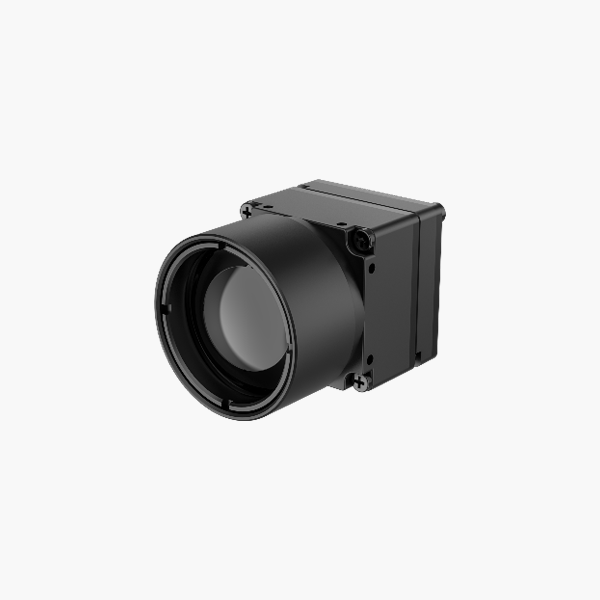

12Umu 384x288 USB ibisohoka neza ubunini bwa module

Nimero y'icyitegererezo

Sg - htm03U2 - T9

SG - HTM03U2 - T15

Module

Ishusho

Vox Yatanduye Indege Yibanze

Max. Imyanzuro

384 × 288

Igipimo

Ingaruka, 6hz kugeza 50hz

Pixel intera

12μm

Igisubizo Waveband

8μm kuri 14μm

Netd

≤ 40Mk (@ 25 ° c), f # = 1.0

Lens (uburebure bwibanze)

9.7m

15.4mm

F Umubare

F1.0

F1.0

Ifov

1.2Mrad

0.8MRAD

Umwanya wo kureba (H × V)

26.46 ° × 19.81 °

17 ° × 12.8 °

Min. Kwibanda kure

2m

5m

Gupima ubushyuhe

Ubushyuhe

- 20 ° C ~ + 150 ° C & 100 ° C ~ 550 ° C.

Ubushyuhe bufatika

Max (± 2 ° C, ± 2%) ku bushyuhe bwibidukikije 25 ° C na ubushyuhe bwibintu hejuru ya 0 ° C.

Intera yubushyuhe

(bishingiye kuri 0.65 × 0.65m)

10m (kure cyane)

15m (kure cyane)

Amategeko

Ubwoko bukoreshwa nubushyuhe bwamategeko, amategeko 21 (amanota 10, uturere 10, n'umurongo 1)

Ibisohoka

16bitubutu bwubushyuhe

Kwerekana amashusho

Itandukaniro

Yego

Guhindura neza

Yego

Palettes

15 palettes yo guhinduka ibara, isanzwe ishyushye

Ffc (gukosora umurima) uburyo

Auto, imfashanyigisho, gukosorwa hanze

Dde

Yego

Rusange

Imigaragarire

USB2.0 FPC

Imbaraga

DC 5V ± 5%

Kunywa amashanyarazi

≤0.55W

Vibration & Guhungabana

Vibration: Sinusoidel Vibration, 20 m / s ², 3 - Axis

SHOCK: Kimwe cya kabiri Cine Wave, 30 G / 11 MS, 3 - Axis 6 - Inzira

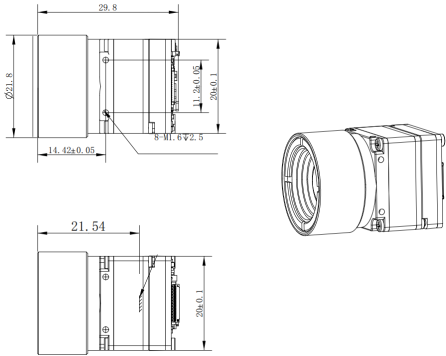

Urwego

29.8mm * 20mm * 20mm

29.8mm * 20mm * 20mm

Uburemere

≤22g

≤22g

Ubushyuhe bwakazi

- 40 ° C ~ 70 ° C.
