12Umu 640x512 USB (CVBS / Ubwoko - mipi) ibisohoka neza ubunini bwa Trarmal Module
|
Nimero y'icyitegererezo |
SG - VTM06U (C, m) 2 - x |
SG - VTM03U (C, m) 2 - x |
|
Module |
||
|
Ishusho |
Vox Yatanduye Indege Yibanze |
|
|
Max. Imyanzuro |
600 × 512 |
|
|
Igipimo |
≤50Hz |
|
|
Pixel intera |
12μm |
|
|
Igisubizo Waveband |
8μm kuri 14μm |
|
|
Netd |
≤ 50Mk (@ 300k), f # = 1.0 |
|
|
Lens (uburebure bwibanze) |
9.1 / 13/10 / 25 / 35mm |
9.1 / 13/25 / 35mm |
|
F Umubare |
F1.0 |
F1.0 |
|
Umwanya wo kureba (H × V) |
45.8 ° × 37.3 ° / 32.9 ° × 26.6 ° / 22.6 ° × 18.2 ° / 17.3 ° × 13.8 ° / 12.5 ° × 10.0 ° |
28.7 ° × 21.7 ° / 20.1 ° × 15.1 ° 10.5 ° × 7.9 ° / 7.5 ° × 5.6 ° |
|
Kwerekana amashusho |
||
|
Zoom zoom |
1 ~ 8x |
|
|
Gukosora ishusho |
Gukosorwa |
|
|
Umucyo & Itandukaniro |
Auto |
|
|
Ibara palettes |
Ubushyuhe bwera, ubushyuhe bwirabura, Icyuma gitukura, umukororombya |
|
|
Inzira y'ibishusho |
NTA KINTU BISOBANURA, Byuzuye |
|
|
Video |
||
|
Imiterere ya Video |
Usb |
|
|
Imigaragarire |
9pin usb cyangwa cvbs, 20pin mipi |
|
|
Rusange |
||
|
Imbaraga |
DC 4.5V ~ 18v (hejuru cyane, wice witonze, guhinduranya kwinjiza) |
|
|
Kunywa amashanyarazi |
.2w |
|
|
Ubushyuhe bwakazi |
- 20 ° C ~ 55 ° C. |
|
|
Ubushyuhe bwo kubika |
- 45 ° C ~ 60 ° C. |
|
|
Ubushuhe |
5 ~ 95%, Non - Condansing |
|
|
Vibration - Kurwanya |
6.06g, kunyeganyega bisanzwe, icyerekezo cyose cya axial |
|
|
Ihungabana |
Inyuma Yamamoto Yamamoto, 200g / 4ms, 3 - Axis 6 - Inzira |
|
|

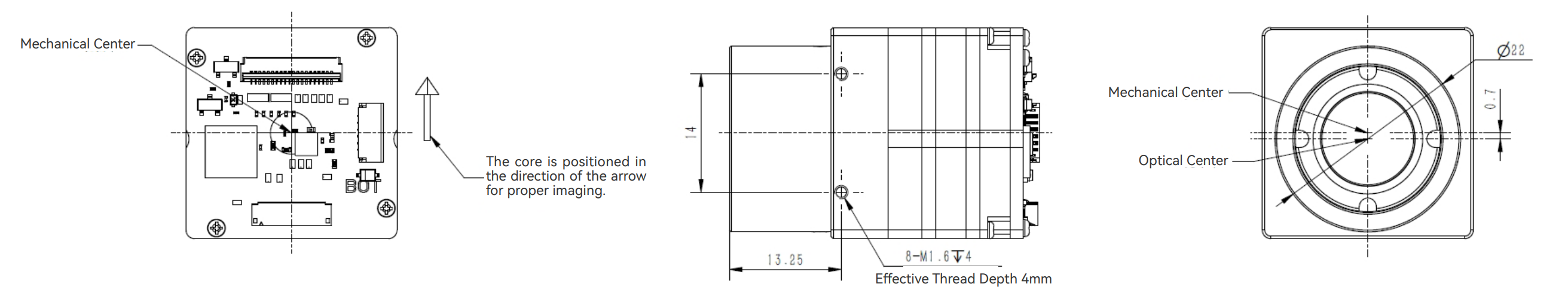

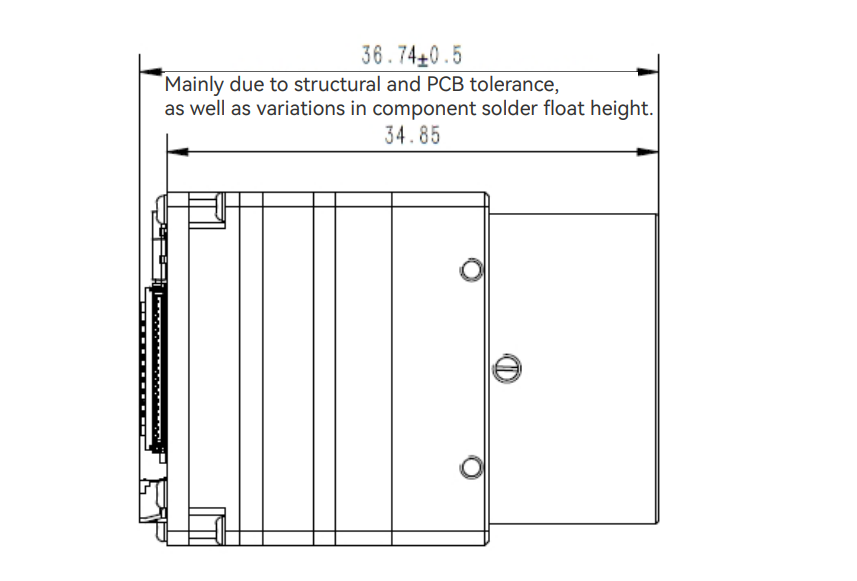

Igipimo (mm) |
38.14 * 25 * 25mm (39.55 * 25 * 25mm kuri 9.1 lens lens) |
|
|
Uburemere |
≤42g ± 3g (≤38g ± 3G kuri 9.1 lens lens) |
|
