12Umu 640x512 Usb
|
Nimero y'icyitegererezo |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Module |
||||
|
Ishusho |
Vox Yatanduye Indege Yibanze |
|||
|
Max. Imyanzuro |
600 × 512 |
|||
|
Igipimo |
Guhindurwa, 6hz kugeza 30Hz |
|||
|
Pixel intera |
12μm |
|||
|
Igisubizo Waveband |
8μm kuri 14μm |
|||
|
Netd |
≤ 40Mk (@ 25 ° c), f # = 1.0 |
|||
|
Lens (uburebure bwibanze) |
9.1m |
15m |
19mm |
25mm |
|
F Umubare |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Ifov |
1.3Mrad |
0.8MRAD |
0.6MRAD |
0.48MRAD |
|
Umwanya wo kureba (H × V) |
48.3 ° × 38.6 ° |
29.3 ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Kwibanda kure |
2m |
5m |
7m |
8m |
|
Gupima ubushyuhe |
||||
|
Ubushyuhe |
- 20 ° C ~ + 150 ° C & 100 ° C ~ 550 ° C. |
|||
|
Ubushyuhe bufatika |
Max (± 2 ° C, ± 2%) ku bushyuhe bwibidukikije 25 ° C na ubushyuhe bwibintu hejuru ya 0 ° C. |
|||
|
Intera yubushyuhe (bishingiye kuri 0.65 × 0.65m) |
10m (kure cyane) |
15m (kure cyane) |
20m (kure cyane) |
25m (kure cyane) |
|
Amategeko |
Ubwoko bukoreshwa nubushyuhe bwamategeko, amategeko 21 (amanota 10, uturere 10, n'umurongo 1) |
|||
|
Ibisohoka |
16bitubutu bwubushyuhe |
|||
|
Kwerekana amashusho |
||||
|
Itandukaniro |
Yego |
|||
|
Guhindura neza |
Yego |
|||
|
Palettes |
15 palettes yo guhinduka ibara, isanzwe ishyushye |
|||
|
Ffc (gukosora umurima) uburyo |
Auto, imfashanyigisho, gukosorwa hanze |
|||
|
Dde |
Yego |
|||
|
Rusange |
||||
|
Imigaragarire |
USB2.0 FPC |
|||
|
Imbaraga |
DC 5V ± 5% |
|||
|
Kunywa amashanyarazi |
≤0.55W |
≤0.55W |
≤0.55W |
≤0.65W |
|
Vibration & Guhungabana |
Vibration: Sinusoidel Vibration, 20 m / s ², 3 - Axis SHOCK: Kimwe cya kabiri Cine Wave, 30 G / 11 MS, 3 - Axis 6 - Inzira |
|||
|

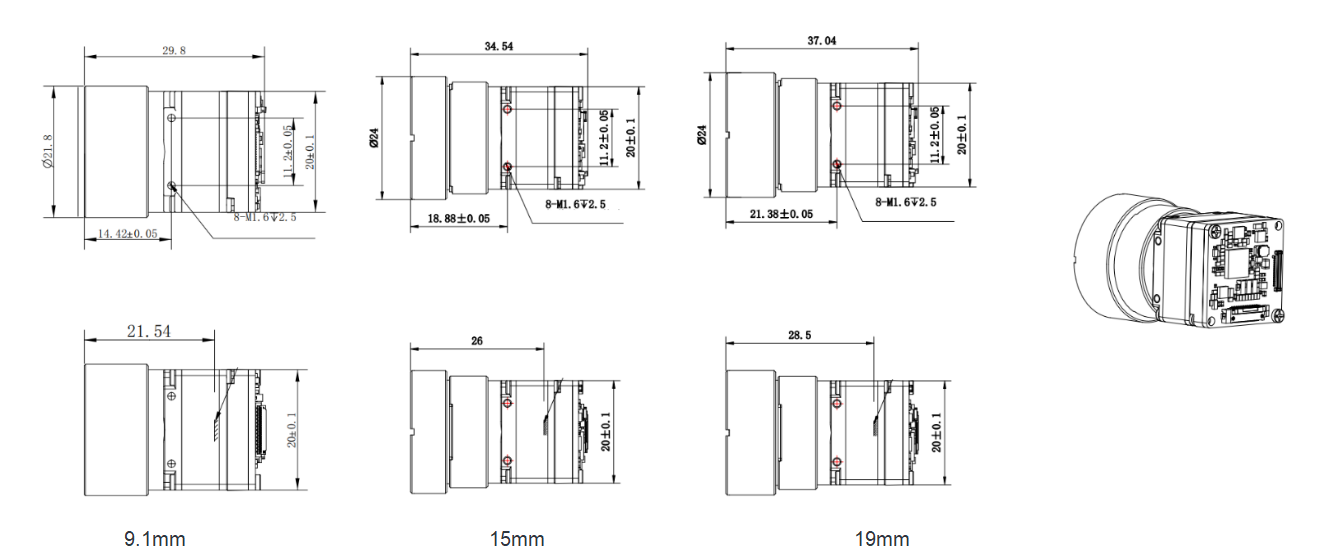

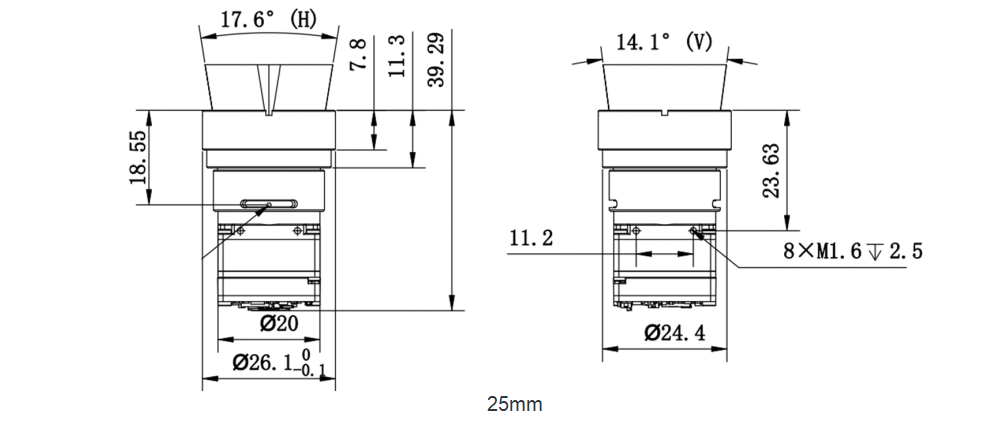

Igipimo (mm) |
29.8 * 20 * 20mm |
34.54 * 20 * 20mm |
37.04 * 20 * 20mm |
39.29 * 20 * 20mm |
|
Uburemere |
≤22g |
≤28g |
≤32g |
≤33g |
|
Ubushyuhe bwakazi |
- 40 ° C ~ 70 ° C. |
|||
