640x512 Umuyoboro wubushyuhe bwa kamera hamwe 30 ~ 180mm (30 ~ 120mm) lens ya moteri
|
Icyitegererezo |
SG - TCM06N2 -M30180 |
SG - TCM06N2 -M30120 |
|
|
Sensor |
Ishusho |
Ibiti bya Vox Microbolometero |
|
|
Imyanzuro |
600 × 512 |
||
|
Igipimo |
50hz |
||
|
Pixel |
12μm |
||
|
Intera meza |
8 ~ 14μm |
||
|
Netd |
≤40Mk @ 25 ° C, f # 1.0 |
||
|
Lens |
Gutwikira |
Dlc |
|
|
Uburebure bwibanze |
30 ~ 180mm |
30 ~ 120mm |
|
|
Ubwoko bwa Lens |
Moteri |
Moteri |
|
|
Kuzamura |
6x |
4x |
|
|
Zoom zoom |
8x |
8x |
|
|
F Agaciro |
F1.0 ~ F1.4 |
F1.0 ~ F1.4 |
|
|
Fov |
14.59 ° × 11,69 ° ~ 2.44 ° × 1.96 ° |
14.59 ° × 11,69 ° ~ 3.67 ° × 2.93 ° |
|
|
Video |
Kwikuramo |
H.265 / H.264 / H.264h / H.264b / Mjpeg |
|
|
Ijwi ryamajwi |
AAC / MP2L2 |
||
|
Snapshot |
JPEG |
||
|
Imyanzuro |
Imigezi nyamukuru: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480) |
||
|
Video Bit Igipimo |
4Kbps ~ 65MBPS |
||
|
Umuyoboro |
Umuyoboro |
IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour |
|
|
Api |
Onvin, http api, SDK, GB28181 |
||
|
Umutekano wa Network |
Umukoresha Kwemeza, IP / Mac Akayunguruzo, Enpsps Encryption, IEEE 802.1X Igenzura |
||
|
Urubuga |
Ni ukuvuga, inkombe, firefox, chrome |
||
|
Umukoresha |
Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha |
||
|
Ububiko |
Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS |
||
|
Multicast |
Inkunga |
||
|
Ubwenge |
Kurinda Perimeter |
UmuyoboroWire, Kureka kurengana, kwinjira |
|
|
Isesengura ry'imyitwarire |
Ikintu cyatereranywe, Gukuraho ibintu, Byihuta - Kwimuka, Kumenya imbaga, Kureka, Gutahura Parikingi, Gutahura |
||
|
Ibyabaye |
Gutahura, videwo, Scenection Impinduka, Gutahura amajwi |
||
|
Kumenyekanisha umuriro |
Inkunga |
||
|
Imigaragarire |
Ethernet |
4Pin Ethernet Port, 10m / 100m wenyine - Guhuza |
|
|
Gutabaza muri / hanze |
1/1 |
||
|
Audio muri / hanze |
1/1 |
||
|
Kugenzura interineti |
1x TTL 3.3V (Protocole ya Visca), 1x rs485 (plco protocole) (TTL 3.3V Bihitamo) |
||
|
Inyandiko |
Umuyoboro na cvbs |
||
|
Ibara rya pseudo |
Umukara ushyushye, umukara ushyushye, Fusion, Icyuma gitukura, nibindi 20 Amahitamo |
||
|
Uburyo bwo kwibanda |
Auto / intoki / imwe gusunika af |
||
|
Uburyo bwa FFC |
Auto / Igitabo |
||
|
Gushiraho amashusho |
Umucyo, urengana, ubunekari, no kugabanya urusaku rwibutaka |
||
|
Osd |
Inkunga |
||
|
Flip |
Inkunga |
||
|
Indorerwamo |
Inkunga |
||
|
Amashanyarazi |
DC 12V, 1a |
||
|
Kunywa amashanyarazi |
2.5w |
||
|
Gukoresha Amashanyarazi |
7.3w |
7.1W |
|
|
Ibihe |
- 30 ° C ~ + 60 ° C / 20% kugeza 80% rh |
||
|
Imiterere |
- 40 ° C ~ + 70 ° C / 20% kugeza 95% rh |
||
|
Urwego rwo kurengera inguzanyo |
Ip67 |
||
|

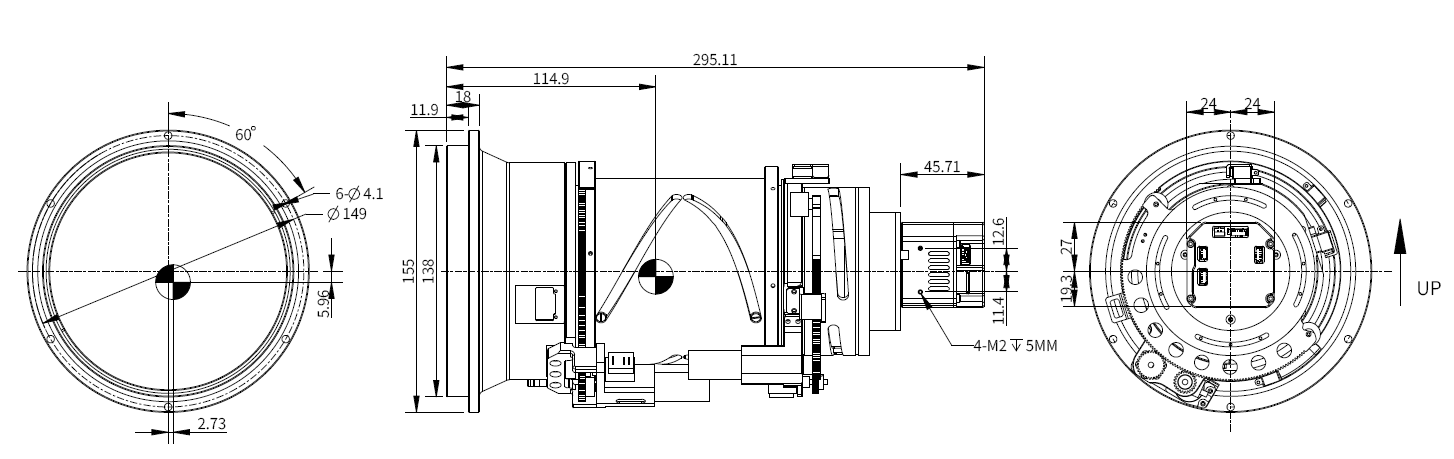

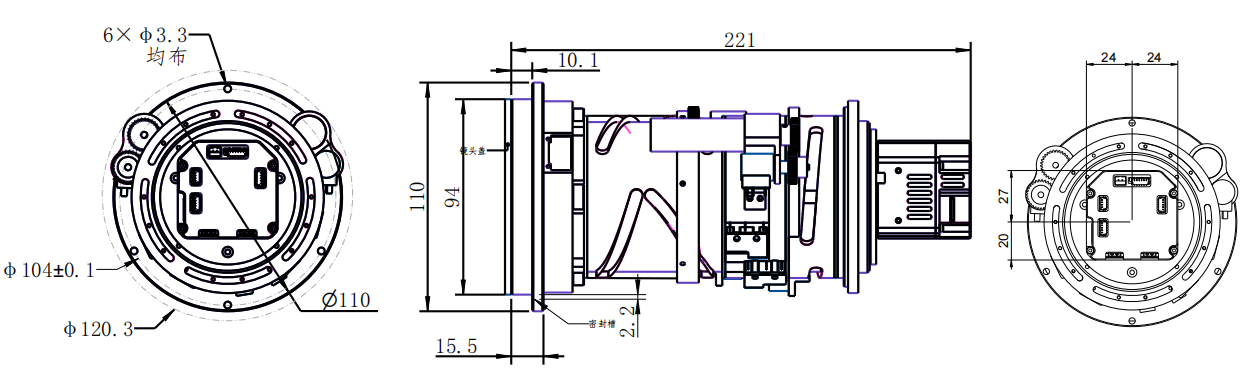

Ibipimo (l * w * h) |
Φ155 * 295mm |
Φ110 * 221mm (Flange) Φ120 * 221mm (max. Projection) |
|
|
Uburemere |
Hafi. 3.2Kg (harimo na lens cap) |
Hafi. 1.72kg (harimo na lens cap) |
|
Intera
Intego: Ingano yumuntu ni 1.8m × 0.5m (Ingano ikomeye ni 0.75m), ingano yimodoka ni 1.4m × 4.0m (Ingano yingenzi ni 2.3m); Ingano yumuriro ni 0.13m × 0.13m (Ingano ikomeye ni 0.13m).
Ikirangantego cyo kumenya, kumenyekana no kumenyekanisha no kumenyekanisha kubarwa hakurikijwe ibipimo bya Johnson.
Intera isabwa yo gutahura, kumenyekana no kumenyekana ni ibi bikurikira:
|
Lens |
Detect |
Rkumvikana |
Indangagaciroy |
||||||
|
Imodoka |
Umuntu |
Umuriro |
Imodoka |
Umuntu |
Umuriro |
Imodoka |
Umuntu |
Umuriro |
|
|
30mm |
3833m (12575ft) |
1250m (4101ft) |
217m (712ft) |
958m (3143ft) |
313m (1027ft) |
54m (177ft) |
479m (1572ft) |
156m (512ft) |
27m (89ft) |
|
120mm |
15333m (50305ft) |
5000M (16404ft) |
607m (1991ft) |
3833m (12575ft) |
1250m (4101ft) |
152m (499ft) |
1917m (6289ft) |
625m (2021ft) |
76m (249ft) |
|
180mm |
23.000M (75459ft) |
7500m (24606ft) |
910m (2985ft) |
5750M (18865ft) |
1875M (6152ft) |
227 (744ft) |
2875m (9432ft) |
938m (3077ft) |
113m (371ft) |
