640x512 Umuyoboro wubushyuhe bwa kamera hamwe 30 ~ 120mm lens ya moteri
|
Icyitegererezo |
SG - TCM06N2 - M.30120 |
|
|
Sensor |
Ishusho |
Ibiti bya Vox Microbolometero |
|
Imyanzuro |
600 × 512 |
|
|
Ingano ya Pixel |
12μm |
|
|
Intera meza |
8 ~ 14μm |
|
|
Netd |
≤40Mk @ 25 ° C, f # 1.0 |
|
|
Lens |
Uburebure bwibanze |
30 ~ 120m lens ya moteri |
|
Kuzamura |
4x |
|
|
Zoom zoom |
8x |
|
|
F Agaciro |
F1.0 ~ F1.4 |
|
|
Fov |
14.59 ° × 11,69 ° ~ 3.67 ° × 2.93 ° |
|
|
Video |
Kwikuramo |
H.265 / H.264 / H.264B / H.264h / Mjpeg |
|
Snapshot |
JPEG |
|
|
Ibara rya pseudo |
Inkunga: Gushyushya, Bishyushye Bishyushye, Icyuma gitukura, umukororombya 1, Umukororombya, Umukororombya 2, Umukororombya 2, Fursion, Blusity Umutuku, Amber, TITCTIC |
|
|
Imigezi |
Imigezi nyamukuru: 25 / 30fps @ 1280 × 1024, 25/4ps @ 1280 × 720, 25 / 30fps @ 60 × 512 Sub - 25/4ps @ 640 × 512, 25fps @ 352 × 288, 25fps @ 352 × 240 |
|
|
Umuyoboro |
Umuyoboro |
IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour |
|
Imikoranire |
Onvin, http api, SDK, GB28181 |
|
|
Max. Guhuza |
20 |
|
|
Ubwenge |
Ibyabaye rusange |
Icyerekezo, tamper, ikarita ya SD, umuyoboro |
|
IV |
DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze |
|
|
Kumenyekanisha umuriro |
Inkunga |
|
|
Imigaragarire |
Ethernet |
4Pin Ethernet Port, 10m / 100m wenyine - Guhuza |
|
Analog Video |
1Chb |
|
|
Gutabaza muri / hanze |
1/1 |
|
|
Audio muri / hanze |
1/1 |
|
|
Rs485 |
Inkunga |
|
|
Imyanzuro |
50hz: 25fps @ (1280 × 1024) |
|
|
Ubushobozi bwo kubika |
Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS |
|
|
Amashanyarazi |
DC 12V, 1a |
|
|
Kunywa amashanyarazi |
Imbaraga zihamye: 3w, imbaraga za siporo: 6w |
|
|
Ibihe |
- 30 ° C ~ + 60 ° C / 20% kugeza 80% rh |
|
|
Imiterere |
- 40 ° C ~ + 70 ° C / 20% kugeza 95% rh |
|
|

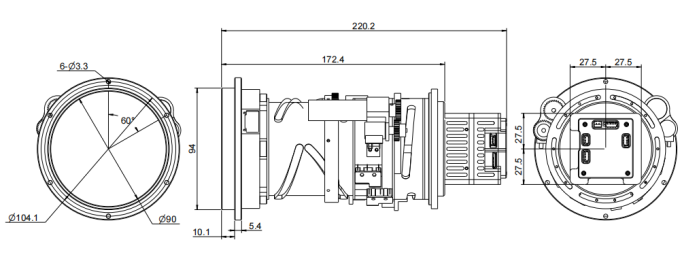

Ibipimo |
Φ110 (Flange) × 221m, φ120 (max. Muri rusange) |
|
|
Uburemere |
Hafi. 1.72Kg |
|
