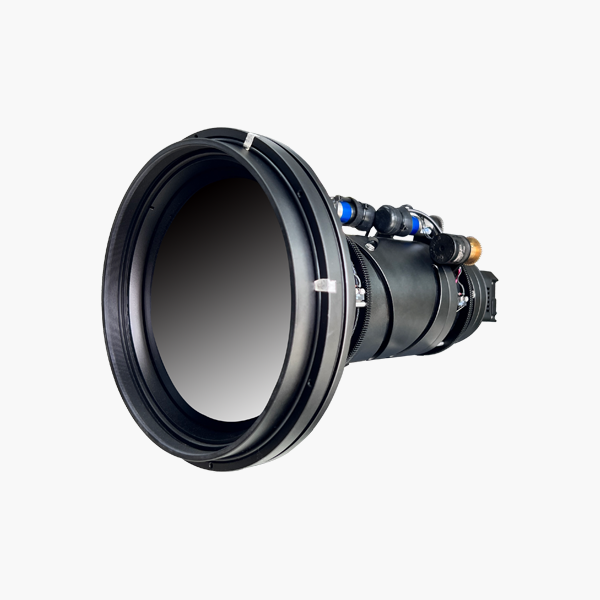

1280x1024 Umuyoboro wa Thermal Module hamwe na 25 ~ 225mm (30 ~ 150mm) lens ya moteri

Icyitegererezo

SG - TCM12N2 -M25225

SG - TCM12N2 -M30150

Sensor

Ishusho

Ibiti bya Vox Microbolometero

Imyanzuro

1280 × 1024

Igipimo

50hz

Pixel

12μm

Intera meza

8 ~ 14μm

Netd

≤35Mk @ 25 ° C, F # 1.0

Lens

Gutwikira

Dlc

Uburebure bwibanze

25 ~ 225mm

30 ~ 150mm

Ubwoko bwa Lens

Moteri

Moteri

Kuzamura

9x

5x

Zoom zoom

8x

8x

F Agaciro

F1.0 ~ F1.5

F1.0 ~ F1.2

Fov

34.15 ° × 27.61 ° ~ 3.91 ° ​​× 3.13 °

28.72 ° × 23.15 ° ~ 5.86 ° × 4.69 °

Video

Kwikuramo

H.265 / H.264 / H.264h / H.264b / Mjpeg

Ijwi ryamajwi

AAC / MP2L2

Snapshot

JPEG

Imyanzuro

Imigezi nyamukuru: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480)
Sub - 2: 50fps @ (704 × 576, 704 × 480, 352 × 288, 352 × 240)

Video Bit Igipimo

4Kbps ~ 40mbps

Umuyoboro

Umuyoboro

IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour

Api

Onvin, http api, SDK, GB28181

Umutekano wa Network

Umukoresha Kwemeza, IP / Mac Akayunguruzo, Enpsps Encryption, IEEE 802.1X Igenzura

Urubuga

Ni ukuvuga, inkombe, firefox, chrome

Umukoresha

Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha

Ububiko

Micro SD / SDHC / SDXC Ikarita (kugeza kuri 1TB) Ububiko bwa Edge, FTP, NAS

Multicast

Inkunga

Ubwenge

Kurinda Perimeter

UmuyoboroWire, Kureka kurengana, kwinjira

Isesengura ry'imyitwarire

Ikintu cyatereranywe, Gukuraho ibintu, Byihuta - Kwimuka, Kumenya imbaga, Kureka, Gutahura Parikingi, Gutahura

Ibyabaye

Gutahura, videwo, Scenection Impinduka, Gutahura amajwi

Kumenyekanisha umuriro

Inkunga

Imigaragarire

Ethernet

4Pin Ethernet Port, 10m / 100m wenyine - Guhuza

Gutabaza muri / hanze

1/1

Audio muri / hanze

1/1

Kugenzura interineti

1x TTL 3.3V (Protocole ya Visca),

1x rs485 (plco protocole) (TTL 3.3V Bihitamo)

Inyandiko

Umuyoboro

Ibara rya pseudo

Umukara ushyushye, umukara ushyushye, Fusion, Icyuma gitukura, nibindi 20 Amahitamo

Uburyo bwo kwibanda

Auto / intoki / imwe gusunika af

Uburyo bwa FFC

Auto / Igitabo

Gushiraho amashusho

Umucyo, urengana, ubunekari, no kugabanya urusaku rwibutaka

Eis

Inkunga

Osd

Inkunga

Flip

Inkunga

Indorerwamo

Inkunga

Amashanyarazi

DC 12V, 1a

Kunywa amashanyarazi

3.8w

Gukoresha Amashanyarazi

7.5W

7.3w

Ibihe

- 30 ° C ~ + 60 ° C / 20% kugeza 80% rh

Imiterere

- 40 ° C ~ + 70 ° C / 20% kugeza 95% rh

Urwego rwo kurengera inguzanyo

Ip67

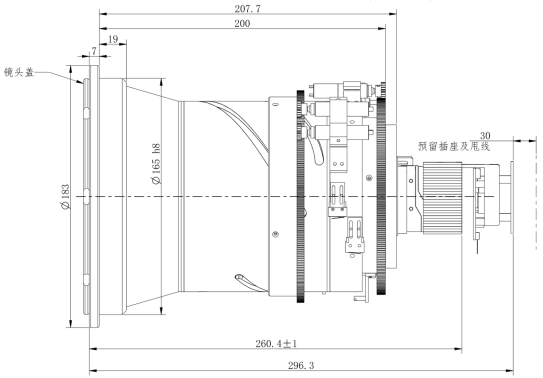

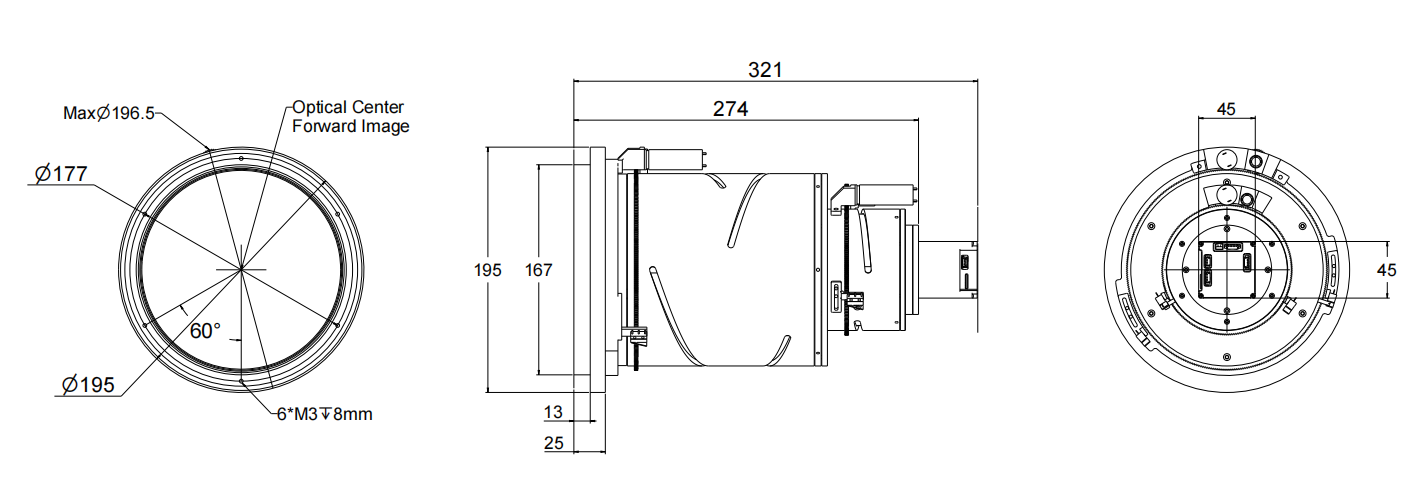

Ibipimo (l * w * h)

Φ195 * 321mm

Φ187 * 286 (mm)

Uburemere

Hafi. 5kg

Hafi. 4.6kg

Lens

Detect

Rkumvikana

Indangagaciroy

Imodoka

Umuntu

Umuriro

Imodoka

Umuntu

Umuriro

Imodoka

Umuntu

Umuriro

30mm

3833m (12575ft)

1250m (4101ft)

217m

(712ft)

958m (3143ft)

313m (1027ft)

54m

(177ft)

479m (1572ft)

156m (512ft)

27m

(89ft)

150mm

19167m (62884ft)

6250M (20505ft)

1083m

(3553ft)

4792m (15722ft)

1563m (5128ft)

271m

(899ft)

2396m (7861ft)

781m (2,562ft)

135m

(443ft)

225mm

28750M (943244ft)

9375m (30758ft)

1625m

(533.co)

7188m (23583ft)

2344m (7690ft)

406m

(1332ft)

3594m (11791ft)

1172m (3845ft)

203m

(666ft)
