12MP/4K 3.5x Zoom Starlight NDAA Network UAV Camera Module

12mp / 4k 3.5x zoom Starclight Ndaa Network uv kamera module

> 1 / 2.8 "Sony CMOS Sensor.

> Ikomeye 10x Optique zoom (4.8mm ~ 48mm).

> Max. 8mp (3840 × 2160).

> Shigikira defog ya eleronic na eis.

> Shigikira ICR Infrared Akayunguruzo Guhindura Kumenya umunsi nyawo nijoro.

> Shigikira OSD zitandukanye.

> Igikorwa cyubwenge gikurikirana gishingiye kuri optique.

> Gushyigikira Indege Log nka Uburebure, Uburebure, uburebure.

> Shyigikira dosiye mp4 yo gufata dosiye no gufata.

> Hamwe na Novatek Imikorere minini.


    Gukuramo

    Ibisobanuro birambuye

    Urwego

    Icyitegererezo

    SG - UCM8003nkL

    Sensor

    Ishusho

    1 / 2.3 "Sony Starvis aratera imbere CMOS

    Pigiseli nziza

    Hafi. 12.47 Megapixel

    Lens

    Uburebure bwibanze

    3.85mm ~ 13.4mm, 3.5x Optique zoom

    Aperture

    F2.4 ~ F5.03

    Umwanya wo kureba

    H: 77.6 ° ~ 25.9 °

    Intera ya hafi

    1m ~ 2m (yagutse ~ tele)

    Umuvuduko wa zoom

    Hafi. 2.5s (optique yagutse ~ tele)

    Dori intera

    (Muntu)

    Kumenya

    Itegereze

    Menya

    Menya

    346m

    137m

    69m

    34

    Video

    Kwikuramo

    H.265 / H.264 / H.264h / Mjpeg

    Ubushobozi bworoshye

    Imigezi 3

    Imyanzuro

    50hz: 10fps @ 12MP (4000 × 3000), 25fps @ 8mp (3840 × 2160)

    60hz: 10fps @ 12MP (4000 × 3000), 30fps @ 8mp (3840 × 2160)

    Video Bit Igipimo

    32Kbps ~ 16Mbps

    Amajwi

    AAC / MP2L2

    Umuyoboro

    Umuyoboro

    IPV4, IPV6, HTTP, HTTPS, TCP, UDP, RTP, DHCP, DNSP, DNSP, DNSP, DNSP, QOS, QOS, BonSour

    Api

    Onvin, http api, sdk

    Urubuga

    Ni ukuvuga, inkombe, firefox, chrome

    Umukoresha

    Abakoresha bagera kuri 20, urwego 2: Umuyobozi, Umukoresha

    Ububiko

    Ikarita ya TF, kugeza kuri 1TB

    Multicast

    Inkunga

    Kuzamura

    Inkunga

    Ibyabaye rusange

    Icyerekezo, tamper, ikarita ya SD, umuyoboro

    Imikorere

    Gukurikirana ubwenge, Snapshot, gufata amashusho, log yindege, GPS amakuru yuzuye, nibindi.

    S / n

    ≥55DB (AGC kuzimya, uburemere kuri)

    Kumurika

    Ibara: 0.01lux / F2.4;

    Kugabanya urusaku

    2D / 3D

    Uburyo bwo kwerekana

    Auto, Gufunga icyambere, Witondere Icyambere, Imfashanyigisho

    Indishyi Zifata

    Inkunga

    Umuvuduko

    1/3 ~ 1/30000

    Blc

    Inkunga

    HLC

    Inkunga

    Wdr

    Inkunga

    Kuringaniza Yera

    AUTO, UNUAL, MUTOOR, Hanze, AT, Amatara ya Sodium, itara ryumuhanda, karemano, gusunika

    Umunsi / nijoro

    Amashanyarazi, ICR (Auto / Igitabo)

    Uburyo bwo kwibanda

    Auto, intoki, igice cyimodoka, auto yihuta, yihuta yimodoka, imwe yisunika af

    Defog

    Inkunga

    Flip

    Inkunga

    Eis

    Inkunga

    Zoom zoom

    16x

    Kugenzura hanze

    TTL, ihujwe na virusi ya virusi

    Imigaragarire

    4Pin Ethernet Port, 6pin Power & Uart Port, 5pin Audio port.

    Porotokole

    Sony Visca, Pelco D / P.

    Ibihe

    - 30 ° C ~ + 60 ° C / 20% kugeza 80% rh

    Imiterere

    - 40 ° C ~ + 70 ° C / 20% kugeza 95% rh

    Amashanyarazi

    DC 12V

    Kunywa amashanyarazi

    Imbaraga zihamye: 3.5W, Imbaraga za siporo: 4.5w

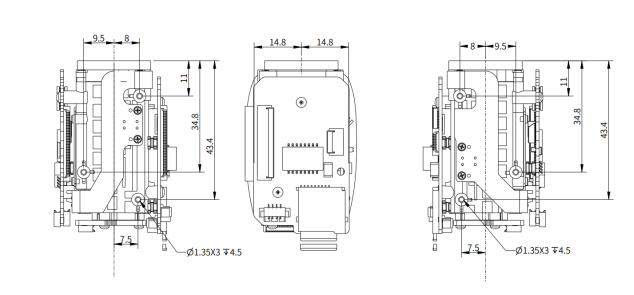

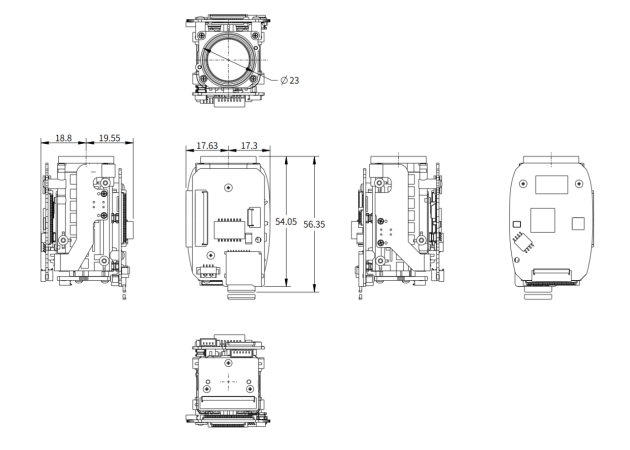

    Ibipimo (l * w * h)

    56.3mm * 35mm * 39mm

    Uburemere

    55g
