1280x1024 / 640x512 umuyoboro hamwe na digitale ebyiri zisohoka swir kamera module
Ibisobanuro
Icyitegererezo | Sg - swz12nd2 - 17510 | Sg - swz06nd2 - 17510 | |
Sensor | Ishusho | 1/2 "Sony Ingaas Shutter Shurter Swir Sensor IMX990 | 1/4 "Sony Ingaas Shurter Swir Sensor IMX991 |
| Pigiseli nziza | Hafi. 1.34mp | Hafi. 0.34mp | |
| Ingano ya Pixel | 5μm | ||
Lens | Igisubizo | 1000 ~ 1700NM | |
| Icr | Shyigikira mode 2: Bande yagutse: 1000 ~ 1700Nmnarrow Band: 1450 ~ 1700NM | ||
| Uburebure bwibanze | 17mm ~ 510mm, 30x Optique zoom | ||
| Aperture | F2.8 ~ F5.5 | ||
| Umwanya wo kureba | H: 21.3 ° ~ 0.71 °, v: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, V: 9.3 ° ~ 0.3 °, D: 14.8 ° ~ 0.27 ° | |
| Intera ya hafi | 1m ~ 10m (yagutse ~ tele) | ||
| Umuvuduko wa zoom | Hafi. 7s (optique yagutse ~ tele) | ||
Video | Kwikuramo | H.265 / H.264 / H.264h / Mjpeg | |
| Imyanzuro | 25 / 30/1 50 / 60fps @ 1280 × 1024 | 25 / 30/1 50 / 60fps @ 640 × 512 | |
| Video Bit Igipimo | 32Kbps ~ 16Mbps | ||
| Amajwi | AAC / MP2L2 | ||
| Lvds video | 25 / 30/1 50 / 60fps @ 2MP (1920 × 1080) | ||
Umuyoboro | Ububiko | Ikarita ya TF (256 GB), FTP, NAS | |
| Umuyoboro | Onvin, http, https, iPv4, iPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Inkunga | ||
| Kuzamura software (LVD) | Gusa birashobora kuzamura software ukoresheje port ya port | ||
| Ibyabaye rusange | Icyerekezo, tamper, ikarita ya SD, umuyoboro | ||
| Ivs | DOGHWIRE, utwotinda wambukiranya uruzitiro, ikintu cyatereranywe, byihuse - Gutererana, Gutererana, gukusanya ibintu, imbaga yabuze | ||
| Kugabanya urusaku | 2D / 3D | ||
| Uburyo bwo kwerekana | Imfashanyigisho, auto, aperture yibanze, funga icyambere | ||
| Indishyi Zifata | Inkunga | ||
| Umuvuduko | 1/1 ~ 1/30000 | ||
| Uburyo bwo kwibanda | Auto / Igitabo / Igice cya Auto | ||
| Defog | Inkunga | ||
| Ubushyuhe bwa haze | Inkunga | ||
| Flip | Inkunga | ||
| Eis | Inkunga | ||
| Zoom zoom | 16x | ||
| Kugenzura hanze | TTL | ||
| Imigaragarire | 4Pin Ethernet Port, 6pin Serial & Power Port, 5pin Ijwi rya Port.30pin Lvds | ||
| Porotokole | Sony Visca, Proco' D / P. | ||
| Ibihe | - 30 ~ + 60 ° C / 20% ~ 80% rh | ||
| Imiterere | - 40 ~ + 70 ° C / 20% ~ 95% rh | ||
| Amashanyarazi | DC 12V | ||
| Kunywa amashanyarazi (TBD) | AVG: 6w; Max: 11w | ||

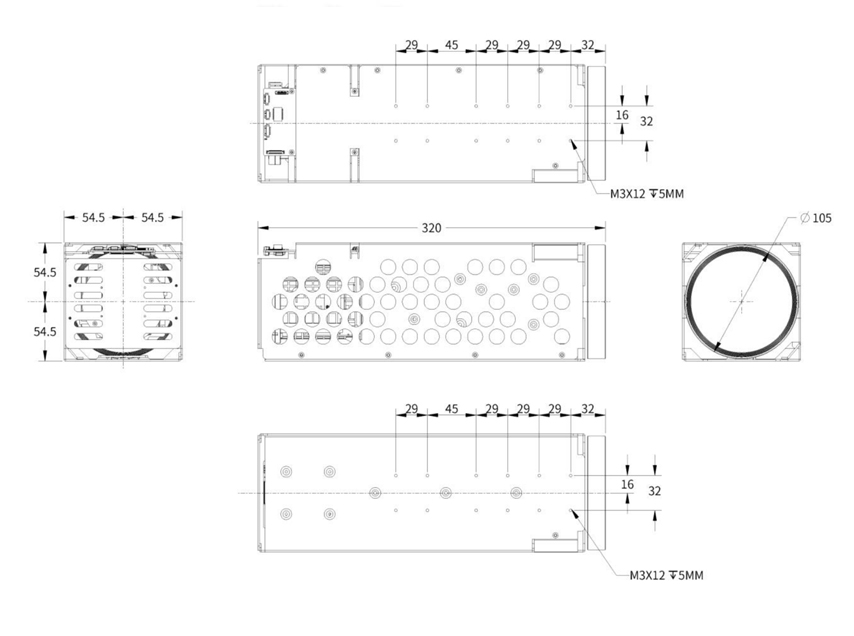

| Ibipimo (l * w * h) | Hafi. 320mm * 109mm * 109mm | ||
| Uburemere | 3.1Kg | ||
Imigaragarire
| Ubwoko | Inomero ya PIN | Izina rya PIN | Ibisobanuro |
| J2_4pin ethernet | 1 | EtROR - | Icyambu cya Etherike, Internet RX - |
| 2 | Etorx + | Icyambu cya Ethernet cya Ethernet, interineti RX + | |
| 3 | Ettx - | Icyambu cya Etherike, Internet TX - | |
| 4 | Ettx + | Icyambu cya Etherike, Internet TX + | |
| J3_6pin Power & Urt Imigaragarire | 1 | Dc_in | DC12V |
| 2 | Gnd | Gnd | |
| 3 | RXD1 | Urwego rwa TTL 3.3V, pelco protocole | |
| 4 | TXD1 | Urwego rwa TTL 3.3V, pelco protocole | |
| 5 | RXD0 | Urwego rwa TTL 3.3V, Visca Protocole | |
| 6 | Txd0 | Urwego rwa TTL 3.3V, Visca Protocole | |
| J1_5pin amajwi amajwi | 1 | Audio_out | Amajwi hanze (umurongo hanze) |
| 2 | Gnd | Gnd | |
| 3 | Audio_in | Amajwi muri (umurongo muri) | |
| 4 | Gnd | Gnd | |
| 5 | NC | NC |
Lvds
| Icyambu | Umubare | Izina rya PIN | Ibisobanuro |
| J4_30pin LVDs Imigaragarire (isa na sony 30pin digitale) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | Gnd | Gnd | |
| 10 | Gnd | ||
| 11 | Gnd | ||
| 12 | Gnd | ||
| 13 | DC | Ibisohoka (DC + 7V ~ + 12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | Urwego rwa TTL 3.3V, Protocole ya Visca, kimwe na TXD0 ku cyambu cya J3_6pin. Ariko ntishobora guhuza icyarimwe. | |
| 19 | UART1_RX | Urwego rwa TTL 3.3V, Protocole, kimwe kuri RXD0 kuri Port j3_6pin. Ariko ntishobora guhuza icyarimwe. | |
| 20 | Gnd | Gnd | |
| 21 | TXOUT0 - | ||
| 22 | TXOT0 + | ||
| 23 | TXOUT1 - | ||
| 24 | TXOUT1 + | ||
| 25 | TXOUT2 - | ||
| 26 | TXOUT2 + | ||
| 27 | TxOutclk - | ||
| 28 | TxOutclk + | ||
| 29 | TXOUT3 - | ||
| 30 | TXOUT3 + |
