12μm 640 × 512 USB (CVBS / Ubwoko - C / MIPI itabishaka) Ingano yoroheje temp igipimo cya time

Nimero y'icyitegererezo

SG - DTM06U (C, m) 2 - x

SG - Dtm06U (C, m) 2 - TX

SG - Dtm03U (C, m) 2 - x

SG - Dtm03U (C, m) 2 - TX

SG - Dtm02U (C) 2 - x

SG - DTM02U (C) 2 - TX

Module

Ishusho

Ibiti bya Vox Microbolometero

Pixel intera

12μm

Igisubizo Waveband

8μm kuri 14μm

Max. Imyanzuro

600 × 512

384 × 228

256 × 192

Igipimo cya Frame (FPS)

50

25

50

25

50

25

Lens (uburebure bwibanze)

9.1 / 13/19 / 25mm

9.1 / 13mm

4/15 / 10mm

F Umubare

F1.0 / F1.0 / F1.1 / F1.2

F1.0

F1.0

Umwanya wo kureba (H × V)

45.9 ° × 36.9 ° / 32.9 ° × 26.6 ° /

22.6 ° × 18.2 ° / 17.3 ° × 13.8 °

28.7 ° × 21.7 ° / 20.1 ° × 15.1 °

46.8 ° × 34.1 ° / 24.6 ° × 18.5 ° / 16.9 ° × 12.8 °

Ibipimo bya Temp

N / a

Inkunga

N / a

Inkunga

N / a

Inkunga

Gupima ubushyuhe

Ubushyuhe

Uburyo bwa Lt: - 20 ° C ~ + 150 ° C; Uburyo bwa HT: 0 ° C ~ + 550 ° C.

Ikosa ryo gupima

Max (± 2 ° C, ± 2%); Gukora Temp: - 20 ° C ~ + 50 ° C.

Kwerekana amashusho

Guhindura amashusho

Umucyo, utandukanye, ukarisha

Birambuye

Inkunga

Inyungu

Auto / Igitabo

Kugabanya urusaku

2D / 3D

Flip

Inkunga

Indorerwamo

Inkunga

Pseudo - ibara

18 palettes yo guhinduka amabara

Crosshair

Kwerekana / kuzimira / kwihisha

Gutunganya amashusho

NUC Ikosora, Urusaku rwumurongo, DDE

Video

Inyandiko

UVC / BT.656 / Mipi / LVDS / CVBS

UVC / CVBS

Imigaragarire yo Kwaguka

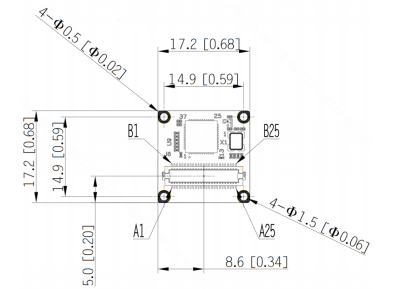

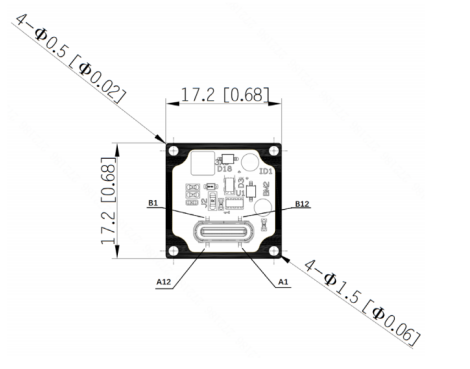

USB / Mipi / CVbs / Ubwoko - c

USB / CVBS / Ubwoko - c

Itumanaho ryuzuye

Urt serial port

Rusange

Imbaraga

DC 4.5 ~ 5.5v; CVBS: DC 4.5-20V

Kunywa amashanyarazi

≤0.7W@25 Eziyac

≤0.7W@25 Eziyac

≤0.55w@25 iremec

Ubushyuhe bwakazi

- 40 ° C ~ 70 ° C.

Ubushyuhe bwo kubika

- 40 ° C ~ 80 ° C.

Gukora Ubushuhe

≤95% RH (Non - Condensing)

Guhungabana

6.06g random, 3 - axis, sine wave

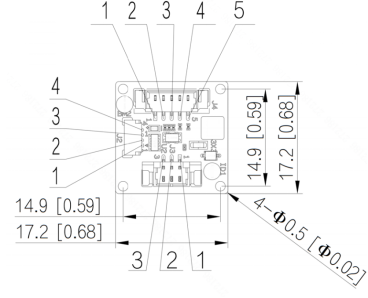

Urwego

17.3mm * 17.3mm * 10.8mm (udafite lens spacer impeta yumurizo)

Uburemere

5g (udafite lens spacer impeta yumurizo)
